Part Number # LMFL90150
SKU # 2436934
LMFL90150
Appleton LMFL90150
Part Number # LMFL90150
SKU # 2436934
Appleton LMFL90150 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | LMFL90150 |
| SKU #: | 2436934 |
| Angle: | 90 deg |
| Dimensions: | 3.97 in L x 3.94 in H |
| Finish: | Zinc Electroplated |
| Series: | LMFL |
| Suitable For Use With: | IMC/Rigid Conduit |
| Trade Size: | 1-1/2 in |
| Type: | Non-Insulated |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131717 |
| UPC: | 00781381481304 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton LMFL90150
Brand: Appleton
Part Number: LMFL90150

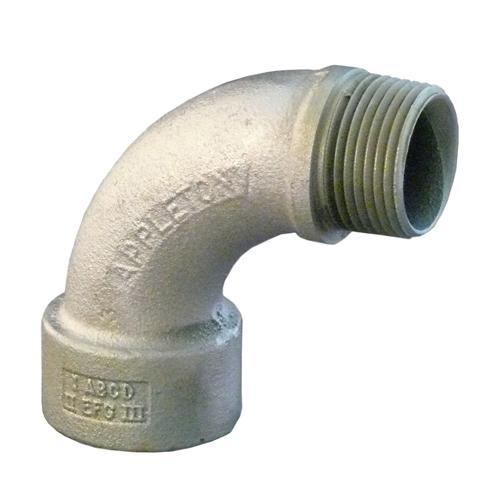

Appleton® Bushed Elbow, Non-Insulated, Series: LMFL, 1-1/2 in Trade, 90 deg Angle, For Use With: IMC/Rigid Conduit, Malleable Iron, Gray, Zinc Electroplated Finish, 3.97 in L x 3.94 in H Dimensions
Additional Description: APLE-LMFL90150 1-1/2 IN 90 DEG BUSHED ELB
Catalog Description: Rigid Conduit Bushed Elbow, Installation Threaded Male/Female, Bend Angle 90 Deg, Trade Size 1-1/2 Inch, Throat Type Long Bushed, Material Zinc Electroplated Malleable Iron, Standard Package 10, Approval UL 514B/E11853, CSA C22.2, Used On Rigid Conduit
LMFL90150 Application
For ordinary locationsLMFL90150 Item Features
- Provide a 90 deg change of direction in a conduit run
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
LMFL90150 Standards
UL 514B File No. E14814|NEMA FB-1|CSA 065178|C22.2 No.18.3|UL Listed for Class I, Div 1 and 2, Groups A, B, C, D|Class II, Div 1 and 2, Groups E, F, G|Class III|NEC|CEC ApprovedSKU #2436934Part Number #LMFL90150UNSPSC39131717UPC00781381481304
Image provided may only be a representation of final product and may include optional equipment
