Part Number # LR18
SKU # 2394172
LR18

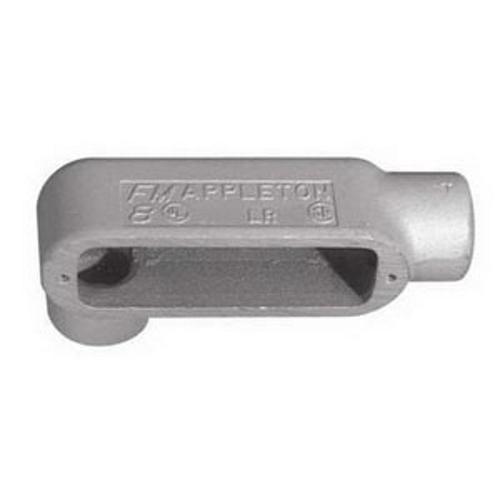

Appleton LR18 Unilets Conduit Outlet Body
Part Number # LR18
SKU # 2394172
Appleton LR18 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | LR18 |
| SKU #: | 2394172 |
| Capacity: | 5 cu-in |
| Dimensions: | 5.09 in L x 2.31 in W x 2.28 in H |
| Enclosure: | NEMA FB-1 |
| Finish: | Triple Coated |
| Form: | Form 8 |
| Hub Size: | 1/2 in |
| Type: | Type LR |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Grayloy Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00781381744225 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton LR18 Unilets Conduit Outlet Body
Brand: Appleton
Part Number: LR18
Appleton UNILETS Conduit Outlet Body, Type LR, 1/2 in Hub, 2 Hubs, 5 cu-in Capacity, Form 8 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Grayloy Iron, Triple Coated, Gray, 5.09 in L x 2.31 in W x 2.28 in H Dimensions
Additional Description: APLE-LR18 1/2 TYPE LR FORM 8 BODY
Catalog Description: FM8 Grayloy-Iron UNILETS Type LR Conduit Outlet Body, Hub Size: 1/2 IN, Form: 8, Length: 5.09 IN, Width: 2.31 IN, Material: Grayloy-Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Color: Gray, Connection: Taper
LR18 Application
For Rigid Steel and IMC ConduitLR18 Item Features
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Completely interchangeable with Crouse-Hinds Form 8 bodies, gaskets and covers
- Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
- Fits flush and snug against flat surfaces for more stable installation
- Smooth hub bushings and cover openings protect conductor insulation
- Smooth hub openings allow easy conduit joining
LR18 Standards
UL 514A/514B/E2527|CSA C22.2 No. 18.3/065183SKU #2394172Part Number #LR18UNSPSC39131708UPC00781381744225
Image provided may only be a representation of final product and may include optional equipment
