Part Number # LR75DCG
SKU # 2394798
Image provided may only be a representation of
final product and may include optional equipment
LR75DCG

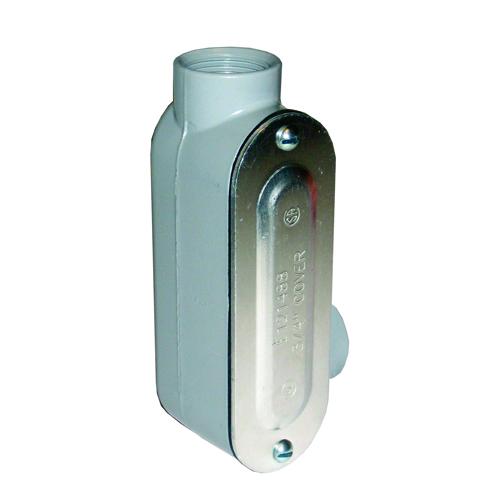

Appleton LR75DCG Neer Conduit Outlet Body
Part Number # LR75DCG
SKU # 2394798
$60.90 / 5Each
Typical price:$168.30 / Each
Appleton LR75DCG Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | LR75DCG |
| SKU #: | 2394798 |
| Capacity: | 7.3 cu-in |
| Dimensions: | 6.44 in L x 2.68 in W x 1.88 in H |
| Finish: | Epoxy Powder Coated |
| Hub Size: | 1 in |
| Type: | Type LR |
| Connection type: | Thread |
| Country of origin: | IN |
| Material: | Die-Cast Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00068785500075 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$60.90 / 5Each
Typical price:$168.30 / Each
Quantity:
- Appleton NEER Conduit Outlet Body, Type LR, 1 in Hub, 2 Hubs, 7.3 cu-in Capacity, Thread Connection, Die-Cast Aluminum, Epoxy Powder Coated, 6.44 in L x 2.68 in W x 1.88 in H Dimensions
LR75DCG Application
For use to provide access to the interior of the raceway for wire pulling, splicing and maintece, allows connection of straight and branch conduit runs, 90 deg bends and use with rigid, IMC and EMT conduit applicationsLR75DCG Item Features
- Lightweight aluminum facilitates shipping, handling and installing
LR75DCG Standards
CSA C22.2 No. 18.3/208044|NEMA FB-1 Rated|UL 514A File No. E53330SKU #2394798Part Number #LR75DCGUNSPSC39131708UPC00068785500075
