Part Number # MD2DS3034F
SKU # 2240074

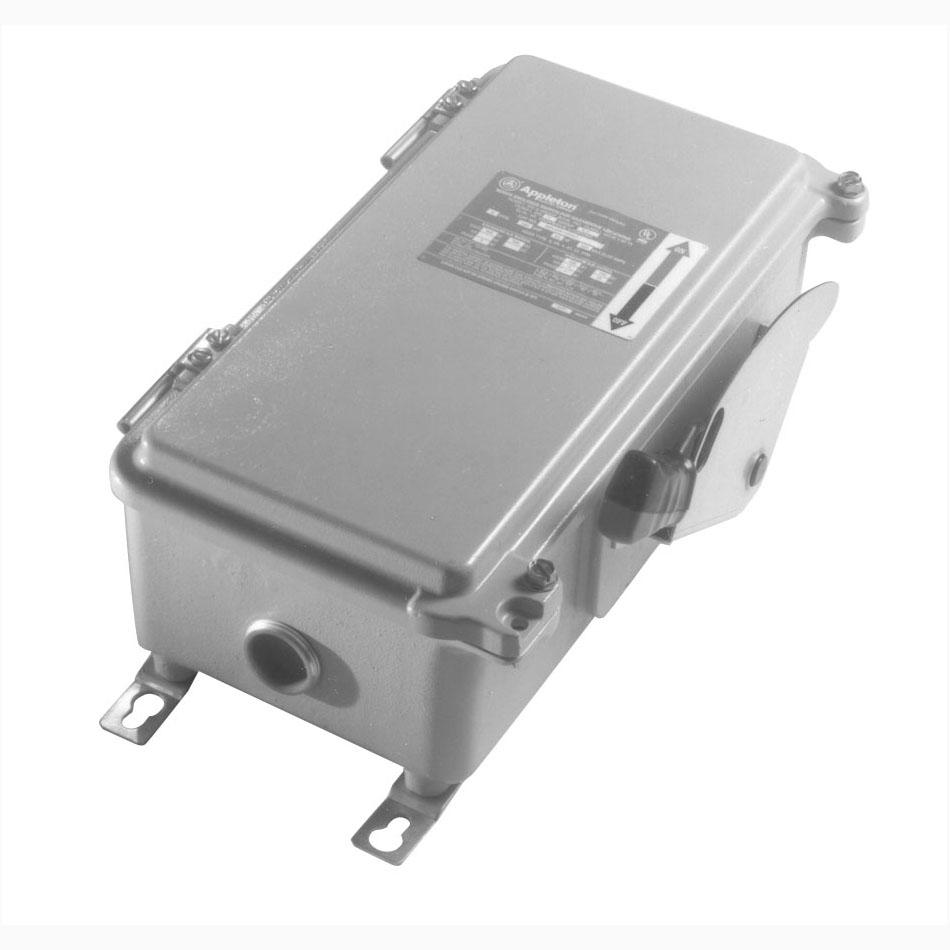

Image provided may only be a representation of
final product and may include optional equipment
MD2DS3034F
Appleton MD2DS3034F Disconnect Switch
Part Number # MD2DS3034F
SKU # 2240074
Appleton MD2DS3034F Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | MD2DS3034F |
| SKU #: | 2240074 |
| Actuator Type: | Handle |
| Amperage Rating: | 30, 30 A |
| Contact Form: | 3PST |
| Dimensions: | 19.25 in H x 11.56 in W x 11 in D |
| Enclosure Type: | NEMA 3/3R/4/4X/12/IP66 |
| Finish: | Epoxy Powder Coated |
| Horsepower: | 20, 20 hp |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Phase: | 3 |
| Series: | MD2DS |
| Type: | Factory Sealed Fused Class J Fuse |
| Country of origin: | US |
| Material: | Copper Free Aluminum |
| Mounting type: | Keyhole |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39122233 |
| UPC: | 00781381810173 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton MD2DS3034F Disconnect Switch
Brand: Appleton
Part Number: MD2DS3034F
Appleton Disconnect Switch, Factory Sealed Fused Class J Fuse, Series: MD2DS, 600 VAC, 30 A, 20 hp, 3 Phase, 3 Pole, 3 Wires, 3PST, Handle Actuator, NEMA 3/3R/4/4X/12/IP66, Keyhole Mount, 19.25 in H x 11.56 in W x 11 in D, Copper Free Aluminum, Gray, Epoxy Powder Coated
Additional Description: APLE-MD2DS3034F MD2DS-DIV2 DISCONNECT
Catalog Description: Disconnect Switch, AC Voltage Rating 600 V, Current Rating 30 Ampere, Power Rating 20 HP at 600 VAC, Fuse Provision Fusible, Fuse Type Class J, Enclosure Class I Div 2 Group, B C D Zone 2 Group IIC, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/12, IP66, Size 11.56 Inch W x 11 Inch D, Enclosure Material Copper Free Aluminum, Finish Epoxy Powder Coated, Approval UL 50/98/894
MD2DS3034F Application
Used to functions as load disconnect switch or as individual motor control switchMD2DS3034F Item Features
- Factory sealed, external seals not required
- Insulated, dual-color polymer operating handle clearly indicates the switch being energized
- Removable hinged cover allows for ease of installation and maintenance
- Short circuit withstand rated to 200000 RMS symmetrical amperes (Class J fusing)
- Short circuit withstand rated to 10000 RMS symmetrical amperes (unfused)
- Conduit entry is drilled and tapped to 1-1/2 in, reducer bushings 1-1/2 in to 1-1/4 in and 1-1/2 in to 1 in provided at no additional cost
- Stainless steel key hole mounting feet for easy installation
- Unit is equipped with defeatable door interlock which allows emergency access when switch is energized
- Cover can be padlocked closed
- Operating handle can be locked in the Off position with provision to lock in the On position
- Ergonomically designed handle is made of high impact polymer material for exceptional ruggedness, durability and corrosion resistance
MD2DS3034F Standards
ARRA Compliant|Buy American Act Compliant|NEC Class I, Div 2, Groups B, C, D|Class II, Div 1 and 2, Groups F, G|Class III|Class I, Zone 2, Group IIC, T3, IP66|UL 98, UL File No. E160652SKU #2240074Part Number #MD2DS3034FUNSPSC39122233UPC00781381810173
