Part Number # NMACP3034BC
SKU # 2290771

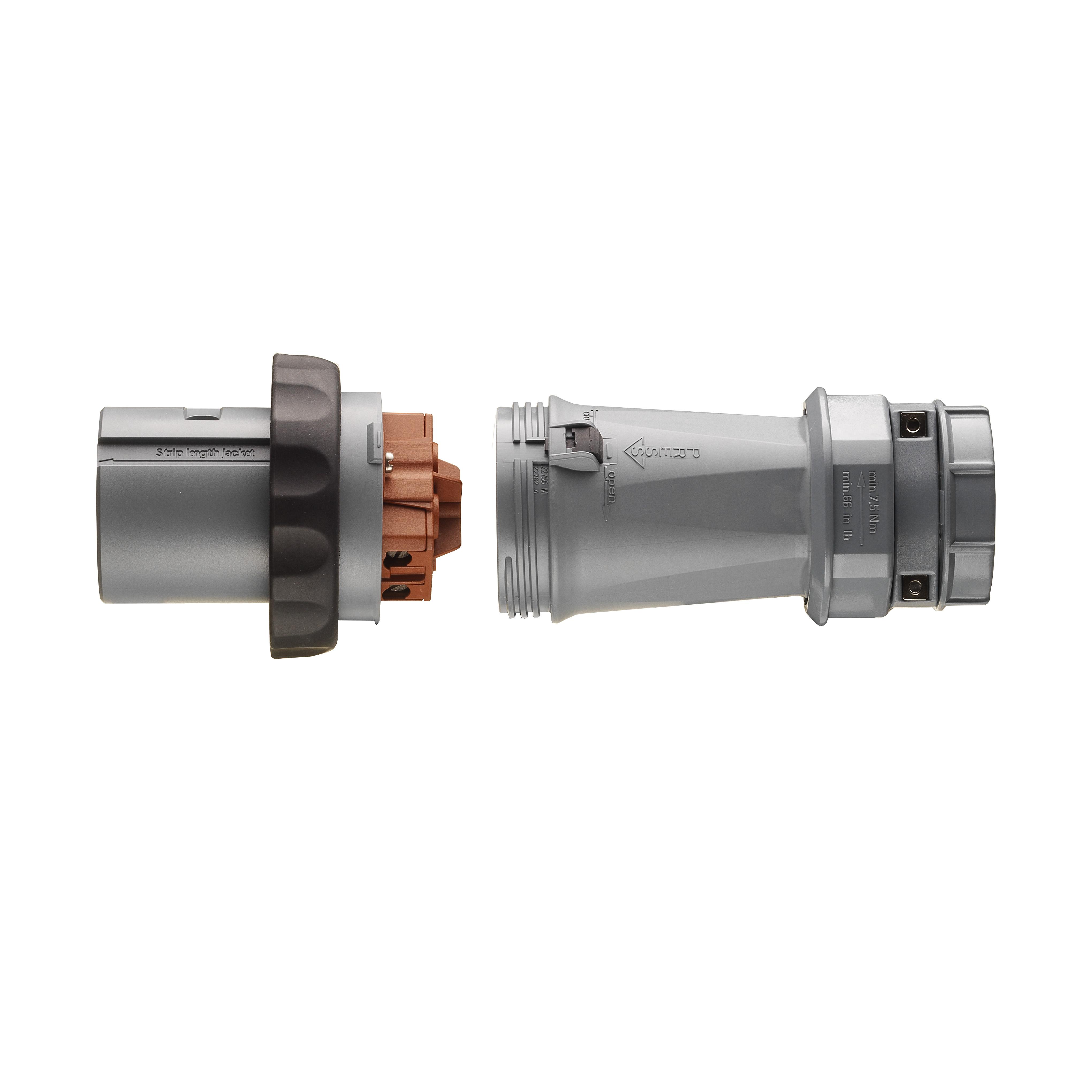

Image provided may only be a representation of
final product and may include optional equipment
NMACP3034BC
Appleton NMACP3034BC Pin and Sleeve Clamping Ring Plug
Part Number # NMACP3034BC
SKU # 2290771
Appleton NMACP3034BC Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | NMACP3034BC |
| SKU #: | 2290771 |
| Amperage Rating: | 30, 30 A |
| Frequency Rating: | 50/400, 50/400 Hz |
| NEMA Rating: | NEMA 3/3R/4/4X |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Terminal Type: | Pressure Wire, Pressure Wired |
| Country of origin: | DE |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121402 |
| UPC: | 00781381308885 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton NMACP3034BC Pin and Sleeve Clamping Ring Plug
Brand: Appleton
Part Number: NMACP3034BC
Appleton Pin and Sleeve Clamping Ring Plug, 600 VAC/250 VDC, 30 A, 50/400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, Pressure Wire Terminal, Copper-Free Aluminum
Additional Description: APLE-NMACP3034BC PLG NON-METALLIC 30A POWERTITE
Catalog Description: Pin and Sleeve Clamping Ring Plug, Constructional Feature Raintight, Voltage Rating 600 VAC/250 VDC 3 Phase at 50 to 400 Hz, Current Rating 30 Ampere, Number of Poles 4, Number of Wires 3, Grounding Style 2, Shell, Extra pole, Minimum Cable Outer Diameter 0.39 Inch, Maximum Cable Outer Diameter 1.375 Inch, Material Epoxy Powder Coated Copper-Free Aluminum, Approval UL 1682/1686/50E/ E145916/E145917, CSA C22.2
NMACP3034BC Application
Compressor, Motor Generator Unit, Polarized, Pump, Welding and Spring DoorNMACP3034BC Item Features
- Shell and extra pole grounding style
- For 0.39 to 1.375 in Dia cable
NMACP3034BC Standards
CSA C22.2|UL 1682/1686/50E/E145916/E145917SKU #2290771Part Number #NMACP3034BCUNSPSC39121402UPC00781381308885
