Part Number # SBLG4122
SKU # 2198943
Image Disclaimers Message
Brand: Appleton
SBLG4122

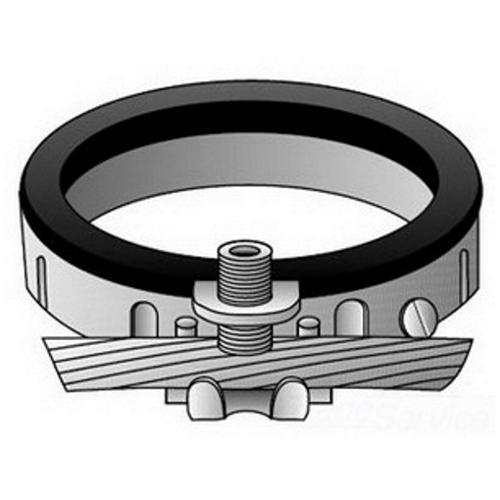

Appleton SBLG4122 Grounding Bushing
Part Number # SBLG4122
SKU # 2198943
$567.65 / 5Each
Appleton SBLG4122 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | SBLG4122 |
| SKU #: | 2198943 |
| AC Cable Size: | 8 to 2/0, 8 to 2/0 AWG |
| Dimensions: | 5 in Dia x 1-1/8 in H |
| Finish: | Zinc Plated |
| Insulated/Non-Insulated: | Insulated |
| Temperature Rating (Degrees F): | 302, 302 deg F |
| Trade Size: | 4, 4 in |
| Type: | Type SBLG |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Mounting type: | Threaded |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121312 |
| UPC: | 00783126481440 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$567.65 / 5Each
Quantity:
- O-Z/Gedney Grounding Bushing, Type SBLG, 8 to 2/0 AWG AC Cable Size, 4 in Trade, Insulated Insulated/Non-Insulated, 302 deg F, Threaded Mounting, Malleable Iron, Zinc Plated Finish, 5 in Dia x 1-1/8 in H Dimensions
SBLG4122 Application
For threadless rigid conduit and IMCSBLG4122 Item Features
- Provides a compact means of grounding conduit through an insulated bushing
- Protect insulated conductors from abrasion during pulling and mechanical vibration
- Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation
- Allows easy insertion of grounding conductor for through or end connection
- Low grounding connector profile
- Spring action design maintains positive firm contact on grounding conductor
- Set screw provides fixed alignment and positive ground continuity
- Phenolic insulation, with 150 deg C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures
- Lugs not sold separately
- Tin plated copper grounding saddle for use with copper or aluminum conductors
SBLG4122 Standards
CSA 015978|CSA 467 C22.2 No.41|Federal Specification W-F-408E|NEMA FB-1|UL 514B E24264SKU #2198943Part Number #SBLG4122UNSPSC39121312UPC00783126481440
