Part Number # SPBBU1Q
SKU # 2269922
SPBBU1Q
Appleton SPBBU1Q Non-Illuminated Pushbutton
Part Number # SPBBU1Q
SKU # 2269922
Appleton SPBBU1Q Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | SPBBU1Q |
| SKU #: | 2269922 |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Contact Rating: | 10 A at 600 V AC, 10 A at 600 VAC |
| Enclosure Type: | NEMA 3/7B/7C/7D/9E/9F/9G, NEMA 3/7BCD/9EFG |
| Environmental Conditions: | -40 to 55 deg C Temperature |
| Finish: | Natural |
| Type: | Heavy Duty Factory Sealed Universal |
| Connection type: | NPSM |
| Country of origin: | MX |
| Material: | Aluminum |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39122216 |
| UPC: | 00781381634441 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton SPBBU1Q Non-Illuminated Pushbutton
Brand: Appleton
Part Number: SPBBU1Q
Appleton Non-Illuminated Pushbutton, Heavy Duty Factory Sealed Universal, 1NC-1NO Contact Configuration, Momentary Contact, 10 A at 600 VAC Contact, NPSM Connection, NEMA 3/7B/7C/7D/9E/9F/9G Enclosure, Surface Mounting, Aluminum, Natural, Environmental Conditions: -40 to 55 deg C Temperature
Additional Description: APLE-SPBBU1Q UNIV PUSHBUTTON SW ASSEMBLY
Catalog Description: Contender Single Push Button Switch, Action: Momentary, Contact Configuration: 1 NO/1 NC, Contact Rating: 10 AMP At 600 VAC, Mounting: Surface Mount With 1/2 IN NPSM, Material: Copperfree (4/10 of 1 PCT Maximum) Aluminum, Finish: Natural, Standard: UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups C, D , Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III, For Remote Control Of Motors
SPBBU1Q Application
Hazardous Location ApplicationsSPBBU1Q Item Features
- Finish is epoxy powder coat for enhanced corrosion resistance
- Large back box for ample wiring room
- Ground screw installed in bodies for ground continuity
- Corrosion resistant stainless steel hex head captive screws hold covers to body
- Factory sealed enclosure eliminates need for adding sealing fittings and compound at each conduit entrance
- Stainless steel pushbutton shaft operates within stainless steel bushing assuring long, maintece free operation
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Pushbutton and selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements
- Enclosed stainless steel helper spring prevents accidental operation of pushbutton in severe vibration installations
SPBBU1Q Standards
Class I, Div 1, Groups C, D, Class I, Div 2, Groups B C D, Class II, Div 1 and 2, Groups E, F, G, Class III|UL 508/698/1203 File No. E10449/E81751SKU #2269922Part Number #SPBBU1QUNSPSC39122216UPC00781381634441

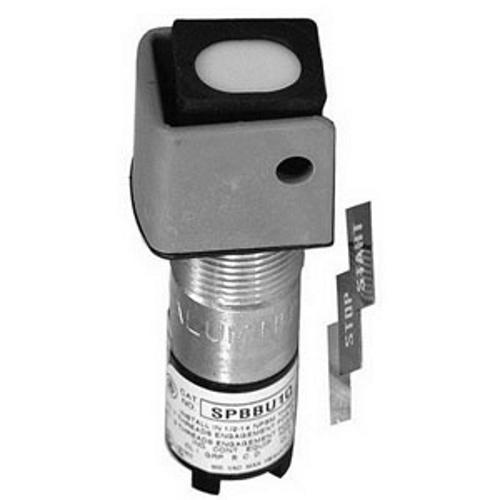

Image provided may only be a representation of final product and may include optional equipment
