Part Number # SR1001000
SKU # 2213045

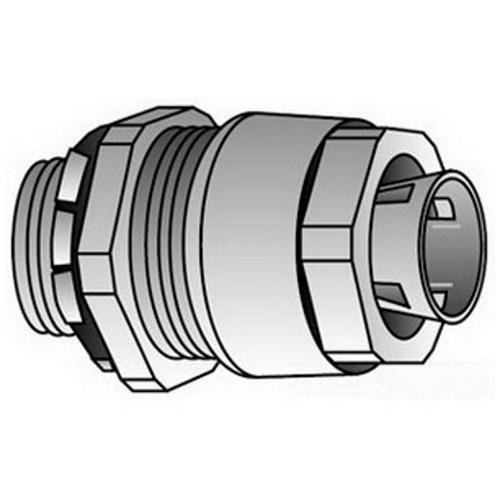

Image provided may only be a representation of
final product and may include optional equipment
SR1001000
Appleton SR1001000 Straight Cord Connector
Part Number # SR1001000
SKU # 2213045
Appleton SR1001000 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | SR1001000 |
| SKU #: | 2213045 |
| Cable Openings: | 7/8 to 1, 7/8 to 1 in |
| Dimensions: | 1.63 in Dia x 1.25 in L |
| Finish: | Zinc Plated |
| Series: | SR Series |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Trade Size: | 1, 1 in |
| Type: | Strain Relief |
| Connection type: | Tapered MNPT |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121431 |
| UPC: | 00783126506686 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton SR1001000 Straight Cord Connector
Brand: Appleton
Part Number: SR1001000
O-Z/Gedney Grip-Tite Straight Cord Connector, Strain Relief, Series: SR Series, 1 in Trade, Cable Openings: 7/8 to 1 in, Tapered MNPT Connection, Malleable Iron, Zinc Plated Finish, Gray, 90 deg C, 1.63 in Dia x 1.25 in L Dimensions
Additional Description: APLE-SR1001000 1 IN STR STRAIN RLF CONN
Catalog Description: OZ-Gedney Type SR Grip-Tite Strain Relief Straight Connector, Size: 1 IN, Conductor Range: 0.875 - 1 IN, Malleable Iron Body And Gland Nut, Nylon Gripper, Neoprene Grommet, PVC Or Buna-N Sealing Ring, Steel Locknut, Finish: Zinc Plated Body, G
SR1001000 Application
For securing and sealing cords or cables entering enclosures or racewaysSR1001000 Item Features
- Grip-tite style-2-piece internal design features a nylon gripper for exceptional pullout protection and a neoprene grommet for a moisture-proof seal
- Dual-grommet style for over 1 in diameter cord range
- Removable insert allows for wider range of cable diameters within single fitting
- Liquid tight or oil tight or raintight
- UL Listed NEMA 4, 6 and 12 when installed into a NPT threaded entry or UL Listed conduit hub
- Suitable for NEMA 4 enclosures and other wet locations
- Furnished complete with sealing ring and locknut
- Colored gripper allows for easy identification
SR1001000 Standards
RoHS Compliant|CSA 009795|CSA C22.2 No. 18|Federal Specification W-F-406E|UL 514B File No. E11857SKU #2213045Part Number #SR1001000UNSPSC39121431UPC00783126506686
