Part Number # SR1008
SKU # 2443026
SR1008
Appleton SR1008
Part Number # SR1008
SKU # 2443026
Appleton SR1008 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | SR1008 |
| SKU #: | 2443026 |
| Cable Openings: | 0.7 to 0.8 in |
| Dimensions: | 1.63 in Dia x 1.25 in L |
| Finish: | Zinc Plated |
| Series: | SR Series |
| Temperature Rating (Degrees F): | 90 deg C |
| Trade Size: | 1 in |
| Type: | Strain Relief |
| Connection type: | MNPT |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121431 |
| UPC: | 00783126507959 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton SR1008
Brand: Appleton
Part Number: SR1008

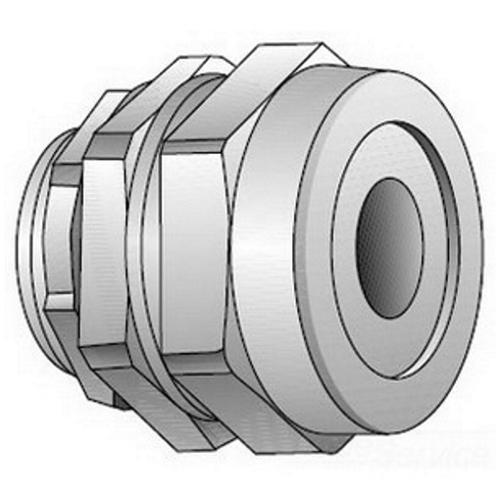

O-Z/Gedney Straight Cord Connector, Strain Relief, Series: SR Series, 1 in Trade, Cable Openings: 0.7 to 0.8 in, MNPT Connection, Malleable Iron, Zinc Plated Finish, 90 deg C, 1.63 in Dia x 1.25 in L Dimensions
Additional Description: APLE-SR1008 1 IN STR STRAIN RLF CONN
Catalog Description: OZ-Gedney Type SR Gold Seal Strain Relief Straight Connector, Size: 1 IN, Conductor Range: 0.7 - 0.8 IN, Malleable Iron, PVC Grommets, Finish: Zinc Plated, 90 DEG C, Connection: MNPT, 0.96 IN Throat Inside Diameter, 5/8 IN Thread Length, Dimension
SR1008 Application
For securing and sealing cords or cables entering enclosures or racewaysSR1008 Item Features
- UL listed NEMA 4 and 6 when installed into a NPT threaded entry or UL listed conduit hub
SR1008 Standards
RoHS Compliant|CSA 009795 C22.2 No. 18|Federal Specification A-505-52|UL File No. E11857SKU #2443026Part Number #SR1008UNSPSC39121431UPC00783126507959
Image provided may only be a representation of final product and may include optional equipment
