Part Number # SR752
SKU # 2426369
SR752
Appleton SR752 O-Z/Gedney Strain Relief Connector
Part Number # SR752
SKU # 2426369
Appleton SR752 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | SR752 |
| SKU #: | 2426369 |
| Cable Openings: | 0.6 to 0.7 in |
| Dimensions: | 1-3/8 in Dia x 1-3/16 in L |
| Finish: | Zinc Plated |
| Series: | SR Series |
| Temperature Rating (Degrees F): | 194 deg F |
| Trade Size: | 3/4 in |
| Type: | Gold Seal Oiltight/Watertight |
| Connection type: | MNPT |
| Country of origin: | MX |
| Material: | Malleable Iron/PVC |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121431 |
| UPC: | 00783126094404 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton SR752 O-Z/Gedney Strain Relief Connector
Brand: Appleton
Part Number: SR752
O-Z/Gedney Strain Relief Connector, Gold Seal Oiltight/Watertight, Series: SR Series, 3/4 in Trade, Cable Openings: 0.6 to 0.7 in, MNPT Connection, Malleable Iron/PVC, Zinc Plated, 194 deg F, 1-3/8 in Dia x 1-3/16 in L Dimensions
Additional Description: APLE-SR752 3/4 IN STR STRAIN RLF CONN
Catalog Description: Strain Relief Connector, Type Straight Male, Thread Size 3/4 Inch, Material Zinc Plated Malleable Iron Body, PVC Grommet, Cord Size 0.1 to 0.2 Inch, Size 1-3/8 Inch Dia x 1-3/16 Inch L, Approval UL 514B, CSA C22.2, Application Oiltight, Watertight, Hazardous Location, Throat Inner Diameter 0.76 Inch, Temperature Rating 90 Deg C
SR752 Application
Hazardous Location ApplicationsSR752 Item Features
- UL listed NEMA 4/6 when installed into a NPT threaded entry or UL listed conduit hub
- Tapered threaded male hub NPT
SR752 Standards
ARRA Compliant|RoHS Compliant|CSA 009795|UL File No. E11857SKU #2426369Part Number #SR752UNSPSC39121431UPC00783126094404

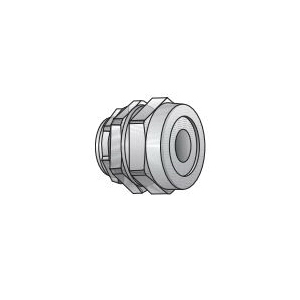

Image provided may only be a representation of final product and may include optional equipment
