Part Number # SR9100875
SKU # 2458669
SR9100875
Appleton SR9100875
Part Number # SR9100875
SKU # 2458669
Appleton SR9100875 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | SR9100875 |
| SKU #: | 2458669 |
| Angle: | 90 deg |
| Cable Openings: | 0.75 to 0.88 in |
| Dimensions: | 1-5/8 Inch Dia x 1-7/8 Inch L |
| Finish: | Zinc Plated |
| Temperature Rating (Degrees F): | 194 deg F |
| Trade Size: | 1 in |
| Type: | Type SR |
| Connection type: | Tapered MNPT |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121431 |
| UPC: | 00783126507041 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton SR9100875
Brand: Appleton
Part Number: SR9100875
O-Z/Gedney Grip-Tite® Strain Relief Connector, Type SR, 1 in, Cable Openings: 0.75 to 0.88 in, Tapered MNPT, 90 deg, Malleable Iron, Zinc Plated, Purple, 194 deg F, 1-5/8 Inch Dia x 1-7/8 Inch L
Additional Description: APLE-SR9100875 1 IN 90 DEG STRAIN RLF CONN
Catalog Description: Strain Relief Connector, Type 90 Deg Male, Thread Size 1 Inch, Material Zinc Plated Malleable Iron Body, Gland Nut, Neoprene Grommet, Nylon Gripper, PVC/Buna-N Sealing Ring, Zinc Plated Steel Locknut, Cord Size 0.75 to 0.875 Inch, Size 1-5/8 Inch Dia x 1-7/8 Inch L, Approval UL 514B, CSA C22.2, Application Oiltight, Liquidtight, Raintight, Wet/Hazardous Location, Color Purple, Throat Inner Diameter 1.02 Inch, Temperature Rating 90 Deg C
SR9100875 Application
For securing and sealing cords or cables entering enclosures or racewaysSR9100875 Item Features
- Provide strain relief to protect the cord or cable from pullout
- Grip-tite style, 2-piece internal design features a nylon gripper for exceptional pullout protection and a neoprene grommet for a moisture-proof seal (up to 1 in diameter cord range)
- Simple installation, cord can be installed without disassembly of the fitting are liquidtight/oiltight/raintight
- Suitable for NEMA 4 enclosures and other wet locations
- Slim diameter profile allows close spacing between connectors
- Furnished complete with sealing ring and locknut
- Colored gripper allows for easy identification
- UL listed NEMA 4, 6 and 12 when installed into a NPT threaded entry or UL listed conduit hub
SR9100875 Standards
ARRA Compliant|CSA 009795 C22.2 No. 18|Federal Specification W-F-406E|UL 514B E11857|RoHS CompliantSKU #2458669Part Number #SR9100875UNSPSC39121431UPC00783126507041

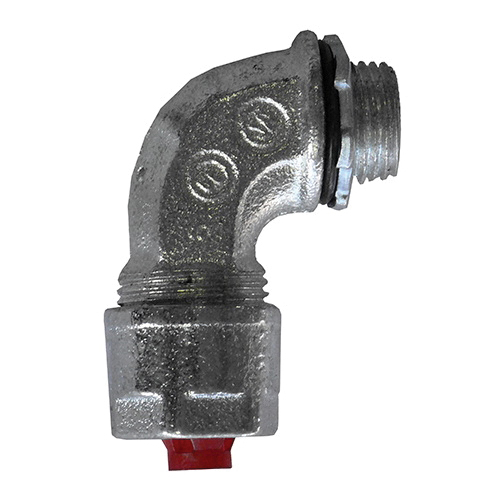

Image provided may only be a representation of final product and may include optional equipment
