SR950375
Appleton SR950375 Strain Relief Connector
Part Number # SR950375
SKU # 2205164
$333.25 / 25Each
Typical price:$412.00 / Each
Appleton SR950375 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | SR950375 |
| SKU #: | 2205164 |
| Angle: | 90, 90 deg |
| Cable Openings: | 1/4 to 3/8, 1/4 to 3/8 in |
| Dimensions: | 1.13 in OD x 1.38 in L |
| Finish: | Zinc Plated |
| Temperature Rating (Degrees F): | 194, 194 deg F |
| Trade Size: | 1/2, 1/2 in |
| Type: | Type SR |
| Color: | White |
| Connection type: | Tapered MNPT |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121431 |
| UPC: | 00783126506907 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$333.25 / 25Each
Typical price:$412.00 / Each
Quantity:

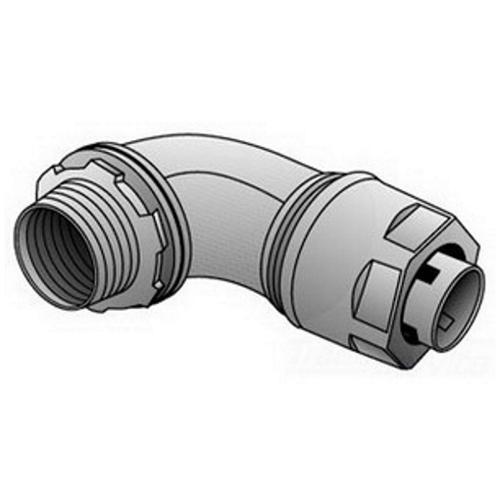

- O-Z/Gedney Grip-Tite Strain Relief Connector, Type SR, 1/2 in, Cable Openings: 1/4 to 3/8 in, Tapered MNPT, 90 deg, Malleable Iron, Zinc Plated, White, 194 deg F, 1.13 in OD x 1.38 in L
SR950375 Application
For securing and sealing cords or cables entering enclosures or racewaysSR950375 Item Features
- Provide strain relief to protect the cord or cable from pullout
- Grip-tite style, 2-piece internal design features a nylon gripper for exceptional pullout protection and a neoprene grommet for a moisture-proof seal (up to 1 in diameter cord range)
- Simple installation, cord can be installed without disassembly of the fitting are liquidtight/oiltight/raintight
- Suitable for NEMA 4 enclosures and other wet locations
- Slim diameter profile allows close spacing between connectors
- Furnished complete with sealing ring and locknut
- Colored gripper allows for easy identification
- UL listed NEMA 4, 6 and 12 when installed into a NPT threaded entry or UL listed conduit hub
SR950375 Standards
ARRA Compliant|UL File Number E-11857|CSA 009795|UL 514B|CSA C22.2 No.18|Federal Specification W-F-406E|NEC Sec. 501-4(b), 502-4(a) (2), and 503-3(a), For Class I, Div 2, Class II, Div 1, 2, and Class III, Div 1, 2|RoHS CompliantSKU #2205164Part Number #SR950375UNSPSC39121431UPC00783126506907
