SR9504

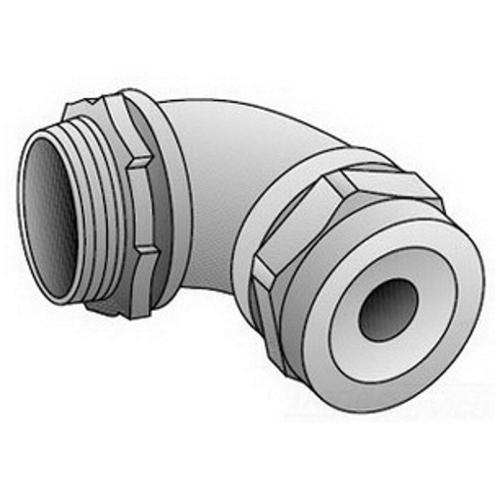

Appleton SR9504 Strain Relief Connector
Part Number # SR9504
SKU # 2189933
Appleton SR9504 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | SR9504 |
| SKU #: | 2189933 |
| Cable Openings: | 0.3 to 0.4 in |
| Type: | Type SR9 Gold Seal |
| Connection type: | Tapered MNPT |
| UNSPSC: | 39121431 |
| UPC: | 00783126514100 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton SR9504 Strain Relief Connector
Brand: Appleton
Part Number: SR9504
O-Z/Gedney Strain Relief Connector, Type SR9 Gold Seal, 1/2 in, Cable Openings: 0.3 to 0.4 in, Tapered MNPT, 90 deg, Malleable Iron, Zinc Plated, 90 deg C
Additional Description: APLE-SR9504 1/2 IN 90DEG STRAIN RLF CONN
Catalog Description: OZ-Gedney Type SR9 Gold Seal Strain Relief 90 DEG Connector, Size: 1/2 IN, Conductor Range: 0.3 - 0.4 IN, Malleable Iron, PVC Grommets, Finish: Zinc Plated, 90 DEG C, Connection: MNPT, 0.5 IN Throat Inside Diameter, 7/16 IN Thread Length, Dimensi
SR9504 Application
For securing and sealing cords or cables entering enclosures or racewaysSR9504 Item Features
- Provide strain relief to protect the cord or cable
- Watertight or oiltight
- UL listed NEMA 4, 6 and 12 when installed into a NPT threaded entry or UL listed conduit hub
SR9504 Standards
ARRA Compliant|RoHS Compliant|CSA 009795 C22.2 No. 18|Federal Specification A-505-52|UL File No. E11857|UL 514BSKU #2189933Part Number #SR9504UNSPSC39121431UPC00783126514100
Image provided may only be a representation of final product and may include optional equipment
