Appleton ST150 Conduit Connector
Part Number # ST150
SKU # 3733

ST150
Appleton ST150 Conduit Connector
Part Number # ST150
SKU # 3733
Appleton ST150 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ST150 |
| SKU #: | 3733 |
| Dimensions: | 2.25 in L x 2.63 in H |
| UNSPSC: | 39121420 |
| UPC: | 00781381679602 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton ST150 Conduit Connector
Brand: Appleton
Part Number: ST150
Appleton Conduit Connector, Liquid Tight Oiltight Raintight, Series: ST Series, 1-1/2 in, Straight, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Triple Coated, 2.25 in L x 2.63 in H
Additional Description: APLE-ST150 1-1/2 IN LFMC CONN
Catalog Description: ST Series Straight Liquidtight Connector With Plain Throat, Size: 1-1/2 IN, Connection: Threaded X Compression, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Dimensions: 2-1/4 IN Length X 2.63 IN Height,
ST150 Application
Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment InstallationST150 Item Features
- Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
- Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
- Polypropylene sealing ring with locknut standard
- Full, machined tapered threads (NPT)
- Compact design with small turning radius
- Seals out oil, water, dust, dirt and fumes
- Suitable for wet locations
- Malleable iron nut
- Chromate/epoxy powder coated/zinc electroplated finish
ST150 Standards
UL 514B|UL File No. E14814|CSA C22.2 No. 18.3|CSA 065178|Class I, Div 2SKU #3733Part Number #ST150UNSPSC39121420UPC00781381679602

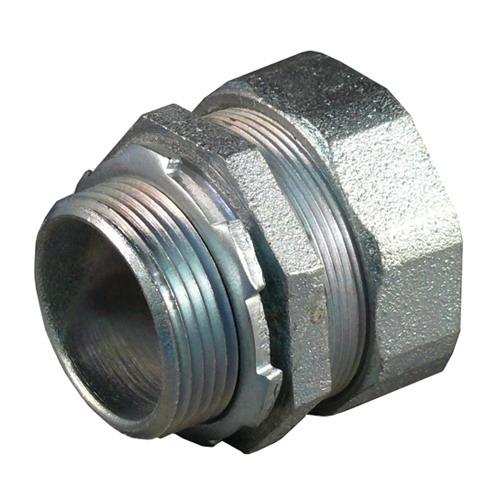

Image provided may only be a representation of final product and may include optional equipment
