Part Number # ST200F
SKU # 2464046
ST200F
Appleton ST200F
Part Number # ST200F
SKU # 2464046
Appleton ST200F Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ST200F |
| SKU #: | 2464046 |
| Angle: | Straight |
| Dimensions: | 2.75 in L x 3.19 in H |
| Finish: | Triple Coated |
| Suitable For Use With: | Liquid Tight Flexible Metallic Conduit |
| Type: | Liquid Tight Oiltight Raintight |
| UNSPSC: | 39121420 |
| UPC: | 00781381463331 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton ST200F
Brand: Appleton
Part Number: ST200F
Appleton Conduit Connector, Liquid Tight Oiltight Raintight, Series: ST Series, 2 in, Straight, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Triple Coated, 2.75 in L x 3.19 in H
Additional Description: APLE-ST200F 2 IN LFMC CONN FEM
Catalog Description: Appleton ST Series Female Liquidtight Connector With Threaded Hub, Size: 2 IN, Connection: Threaded X Compression, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Dimensions: 2.5 IN Length X 2.63 IN Height, Thread Length: 1.12 IN, Standard: Class I, Division 2, UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1, For Liquidtight Flexible Metal Conduit When Making Connection To Threaded Rigid Conduit And IMC
ST200F Application
Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment InstallationST200F Item Features
- Female ST connectors have a unique long ferrule with more pronounced threads that provide over four times UL pull out requirements
- Provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
- Suitable for wet locations
- Full, machined tapered threads (NPT)
- Compact design with small turning radius
- Aluminum ferrule
- Chromate/epoxy powder coated/zinc electroplated finish
ST200F Standards
UL 514B|UL File No. E14814|CSA C22.2 No. 18.3|CSA 065178|Class I, Div 2SKU #2464046Part Number #ST200FUNSPSC39121420UPC00781381463331

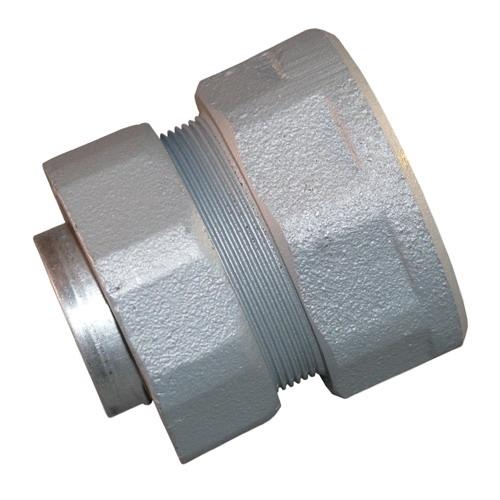

Image provided may only be a representation of final product and may include optional equipment
