Appleton ST300L
Part Number # ST300L
SKU # 2466471

ST300L
Appleton ST300L
Part Number # ST300L
SKU # 2466471
Appleton ST300L Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ST300L |
| SKU #: | 2466471 |
| Dimensions: | 3.69 in L x 4.38 in W |
| Suitable For Use With: | Liquid Tight Flexible Metal Conduit Fitting |
| UNSPSC: | 39121420 |
| UPC: | 00781381403160 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton ST300L
Brand: Appleton
Part Number: ST300L

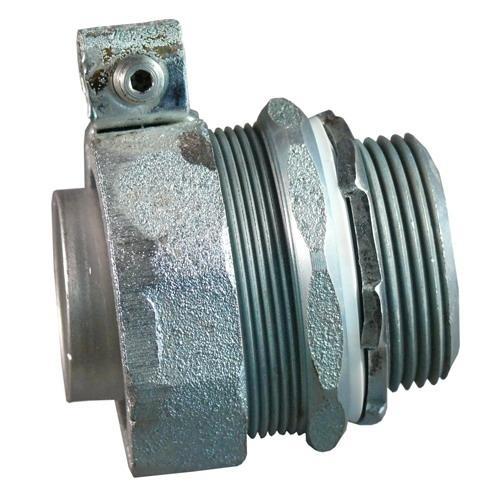

Appleton® Liquid Tight Conduit Connector, Non-Insulated Straight, Series: ST Series, 3 in Trade, For Use With: Liquid Tight Flexible Metal Conduit Fitting, Malleable Iron, Electroplated Zinc, 3.69 in L x 4.38 in W
Additional Description: APLE-ST300L 3 IN LFMC CONN W/GNDG LUG
Catalog Description: Appleton Liquidtight ST-L Series Straight Connector with Plain Throat and External Grounding Lugs. Conduit size: 3 IN, Material: Malleable iron body and compression nut. Grounding lugs size: 1-4/0. Suitable for use in Class I, Division 2
ST300L Application
For use with liquid tight flexible metal conduit where an external, visible equipment bonding jumper is desiredST300L Item Features
- Malleable iron and/or steel construction, steel or aluminum ferrule, polypropylene sealing ring
- Unique long ferrule with pronounced threads provides over four times UL pull out requirements
- Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
- Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection
- Liquidtight, raintight and oiltight
- Suitable for outdoor use
- Full, machined tapered threads (npt)
- Straight, 45 and 90 deg styles available in trade sizes 3/8 through 4 in
- Machine tool building, motor and transformer terminations, robotics assembly, air conditioning equipment installation and other applications that require flexibility and protection against entry of liquids, vapors or solids
- ST-L Series has plain throat, STB-L Series has insulated throat to protect against wire damage
- Suitable for use in hazardous locations Class I, Division 2, Class II, Div. 1 and 2, Class III, Div. 1 and 2, NEC 501-4(b), 502-4(a)(2), 503-3(a)
- 1.19 in L thread
- Zinc electroplate, dichromate and epoxy powder/zinc electroplate
ST300L Standards
UL 514B|E14814 Listed|CSA C22.2 No. 18.3|065178 Certified|NEMA FB-1 ApprovedSKU #2466471Part Number #ST300LUNSPSC39121420UPC00781381403160
Image provided may only be a representation of final product and may include optional equipment
