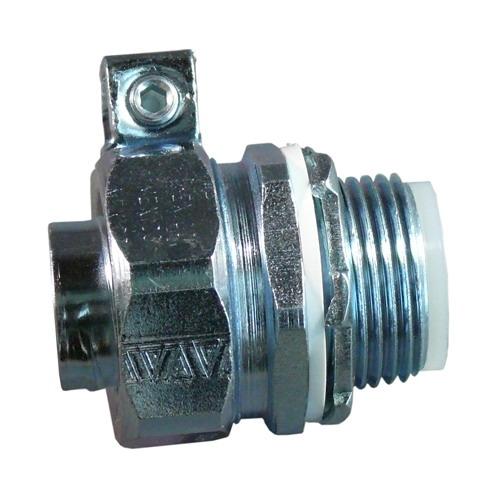

Appleton STB100L Liquidtight Conduit Connector
Part Number # STB100L
SKU # 2384796

STB100L
Appleton STB100L Liquidtight Conduit Connector
Part Number # STB100L
SKU # 2384796
Appleton STB100L Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | STB100L |
| SKU #: | 2384796 |
| Dimensions: | 1.63 in L x 1.81 in W |
| UNSPSC: | 39121420 |
| UPC: | 00781381403511 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton STB100L Liquidtight Conduit Connector
Brand: Appleton
Part Number: STB100L
Appleton Liquid Tight Conduit Connector, Insulated Straight, Series: STB, 1 in Trade, For Use With: Liquid Tight Flexible Metal Conduit Fitting, Steel, Electroplated Zinc, 1.63 in L x 1.81 in W Dimensions
Additional Description: APLE-STB100L 1 IN INSUL LFMC CONN W/LUG
Catalog Description: Appleton Liquidtight STB-L Series Straight Connector with Insulated Throat and External Grounding Lugs. Conduit size: 1 IN, Material: Steel body and compression nut. Grounding lugs size: 14-4. Suitable for use in Class I, Division 2
STB100L Application
For use with liquid tight flexible metal conduit where an external, visible equipment bonding jumper is desiredSTB100L Item Features
- Malleable iron and/or steel construction, steel or aluminum ferrule, polypropylene sealing ring
- Unique long ferrule with pronounced threads provides over four times UL pull out requirements
- Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
- Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection
- Liquidtight, raintight and oiltight
- Suitable for outdoor use
- Full, machined tapered threads (npt)
- Straight, 45 and 90 deg styles available in trade sizes 3/8 through 4 in
- Machine tool building, motor and transformer terminations, robotics assembly, air conditioning equipment installation and other applications that require flexibility and protection against entry of liquids, vapors or solids
- ST-L Series has plain throat, STB-L Series has insulated throat to protect against wire damage
- Suitable for use in hazardous locations Class I, Division 2, Class II, Div. 1 and 2, Class III, Div. 1 and 2, NEC 501-4(b), 502-4(a)(2), 503-3(a)
- 0.75 in L thread
STB100L Standards
UL 514B, E14814 Listed|CSA C22.2 No. 18.3, 065178 Certified|NEMA FB-1 ApprovedSKU #2384796Part Number #STB100LUNSPSC39121420UPC00781381403511
Image provided may only be a representation of final product and may include optional equipment
