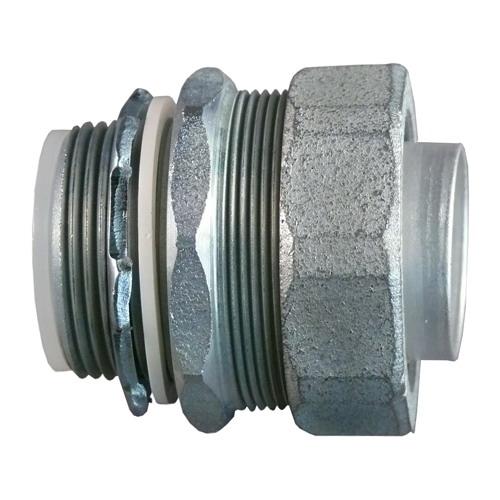

Appleton STB150 Conduit Connector
Brand: Appleton
Part Number: STB150
Appleton Conduit Connector, Liquid Tight Oiltight Raintight, Series: STB, 1-1/2 in, Straight, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Triple Coated, 2.25 in L x 2.63 in H
Additional Description: APLE-STB150 1-1/2 IN INSUL LFMC CONN
Catalog Description: STB Series Straight Liquidtight Connector With Insulated Throat, Size: 1-1/2 IN, Connection: Threaded X Compression, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Dimensions: 2-1/4 IN Length X 2.63 IN H
STB150 Application
Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment InstallationSTB150 Item Features
- Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
- Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
- Polypropylene sealing ring with locknut standard
- Full, machined tapered threads (NPT)
- Compact design with small turning radius
- Seals out oil, water, dust, dirt and fumes
- Suitable for wet locations
- Chromate/epoxy powder coated/zinc electroplated finish
STB150 Standards
UL 514B|UL File No. E14814|CSA C22.2 No. 18.3|CSA 065178|Class I, Div 2|RoHS CompliantSKU #3759Part Number #STB150UNSPSC39121420UPC00781381681155
