Part Number # STB45125SR
SKU # 2223609
Image provided may only be a representation of
final product and may include optional equipment
STB45125SR

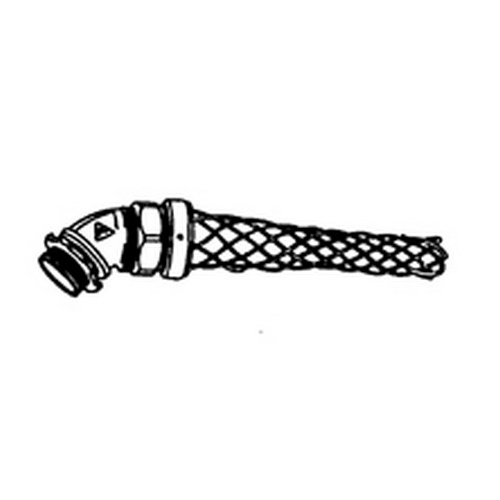

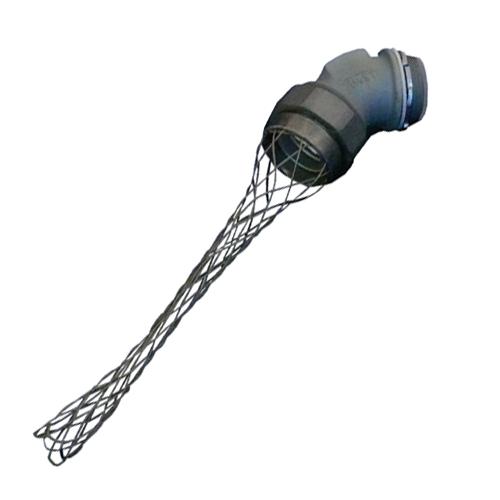

Appleton STB45125SR Liquidtight Conduit Connector
Part Number # STB45125SR
SKU # 2223609
Appleton STB45125SR Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | STB45125SR |
| SKU #: | 2223609 |
| Angle: | 45, 45 deg |
| Cable Openings: | 1.63 to 1.66, 1.63 to 1.66 in |
| Dimensions: | 1.81 in W |
| Finish: | Triple Coated |
| Series: | STB |
| Suitable For Use With: | Liquid Tight Flexible Metallic Conduit, Liquidtight Flexible Metallic Conduit |
| Trade Size: | 1-1/4, 1-1/4 in |
| Type: | Insulated Throat Oiltight Liquidtight Raintight, Insulated Throat Oiltight Raintight |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121420 |
| UPC: | 00781381513814 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton STB45125SR Liquidtight Conduit Connector
Brand: Appleton
Part Number: STB45125SR
Appleton Liquid Tight Conduit Connector, Insulated Throat Oiltight Raintight, Series: STB, 1-1/4 in, Cable Openings: 1.63 to 1.66 in, 45 deg, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Triple Coated, 1.81 in W
Additional Description: APLE-STB45125SR 1-1/4 IN 45D INSUL LFMC CONN
Catalog Description: Liquidtight Flexible Conduit Connector and Wire Mesh, Trade Size 1-1/4 Inch, Connector Type 45 Deg, Connector Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron, Throat Type Insulated, Mesh Material Stainless Steel, Standard Package 10, Approval UL 514B, CSA C22.2, Used On Liquidtight Flexible Metal Conduit, Applicable Standard NEMA FB-1, Application Commercial, Size 1.81 Inch Dia, Thread Length 2.31 Inch
STB45125SR Application
Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment InstallationSTB45125SR Item Features
- Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
- Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
- Stainless steel wire mesh prevents pull out of flexible conduit from fitting and alleviates flexing stress at liquidtight connection
- Suitable for wet locations
- Full, machined tapered threads (NPT)
- Chromate/epoxy powder coated/zinc electroplated finish
STB45125SR Standards
UL 514B|UL File No. E14814|CSA C22.2 No. 18.3|CSA 065178|Class I, Div 2SKU #2223609Part Number #STB45125SRUNSPSC39121420UPC00781381513814
