Brand: Appleton
STB45150

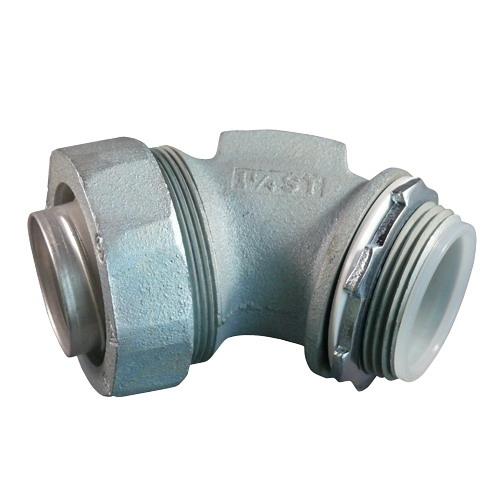

Appleton STB45150 Conduit Connector
Part Number # STB45150
SKU # 3761
$97.88 / 2Each
Typical price:$133.12 / Each
Appleton STB45150 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | STB45150 |
| SKU #: | 3761 |
| Angle: | 45, 45 deg |
| Dimensions: | 2.63 in W |
| Finish: | Triple Coated |
| Series: | STB |
| Suitable For Use With: | Liquid Tight Flexible Metallic Conduit, Liquidtight Flexible Metallic Conduit |
| Trade Size: | 1-1/2, 1-1/2 in |
| Type: | Liquid Tight Oiltight Raintight, Liquidtight Oiltight Raintight |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121420 |
| UPC: | 00781381681803 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$97.88 / 2Each
Typical price:$133.12 / Each
Quantity:
- Appleton Conduit Connector, Liquid Tight Oiltight Raintight, Series: STB, 1-1/2 in, 45 deg, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Triple Coated, 2.63 in W
STB45150 Application
Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment InstallationSTB45150 Item Features
- Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
- Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
- Polypropylene sealing ring with locknut standard
- Full, machined tapered threads (NPT)
- Compact design with small turning radius
- Seals out oil, water, dust, dirt and fumes
- Suitable for wet locations
- Chromate/epoxy powder coated/zinc electroplated finish
STB45150 Standards
UL 514B|UL File No. E14814|CSA C22.2 No. 18.3|CSA 065178|Class I, Div 2|RoHS CompliantSKU #3761Part Number #STB45150UNSPSC39121420UPC00781381681803
