Appleton STB4575 Conduit Connector
Part Number # STB4575
SKU # 3771

STB4575
Appleton STB4575 Conduit Connector
Part Number # STB4575
SKU # 3771
Appleton STB4575 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | STB4575 |
| SKU #: | 3771 |
| UNSPSC: | 39121420 |
| UPC: | 00781381681506 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton STB4575 Conduit Connector
Brand: Appleton
Part Number: STB4575

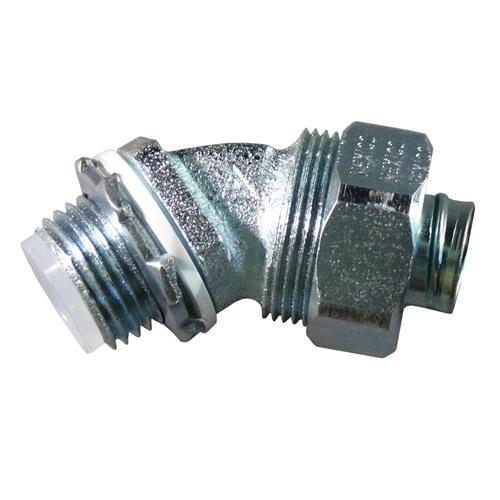

Appleton Conduit Connector, Liquid Tight Oiltight Raintight, Series: STB, 3/4 in, 45 deg, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Triple Coated, 1-1/2 in W
Additional Description: APLE-STB4575 3/4 IN 45D INSUL LFMC CONN
Catalog Description: STB Series 45 DEG Liquidtight Connector With Insulated Throat, Size: 3/4 IN, Connection: Threaded X Compression, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Thread Length: 0.63 IN, Standard: Class I,
STB4575 Application
Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment InstallationSTB4575 Item Features
- Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
- Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
- Polypropylene sealing ring with locknut standard
- Full, machined tapered threads (NPT)
- Compact design with small turning radius
- Seals out oil, water, dust, dirt and fumes
- Suitable for wet locations
- Chromate/epoxy powder coated/zinc electroplated finish
STB4575 Standards
RoHS Compliant|UL 514B File No. E14814|CSA C22.2 No. 18.3|CSA 065178|Class I, Div 2SKU #3771Part Number #STB4575UNSPSC39121420UPC00781381681506
Image provided may only be a representation of final product and may include optional equipment
