Appleton STB75SR Liquidtight Conduit Connector
Part Number # STB75SR
SKU # 2223606

STB75SR
Appleton STB75SR Liquidtight Conduit Connector
Part Number # STB75SR
SKU # 2223606
Appleton STB75SR Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | STB75SR |
| SKU #: | 2223606 |
| Cable Openings: | 1.03 to 1.05 in |
| Dimensions: | 1-1/2 in L x 1-1/2 in H |
| Type: | Insulated Throat Oiltight Raintight |
| UNSPSC: | 39121420 |
| UPC: | 00781381513678 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton STB75SR Liquidtight Conduit Connector
Brand: Appleton
Part Number: STB75SR
Appleton Liquid Tight Conduit Connector, Insulated Throat Oiltight Raintight, Series: STB, 3/4 in, Cable Openings: 1.03 to 1.05 in, Straight, For Use With: Liquid Tight Flexible Metallic Conduit, Steel, Zinc Electroplated, 1-1/2 in L x 1-1/2 in H
Additional Description: APLE-STB75SR 3/4 IN INSUL LFMC CONN WR MESH
Catalog Description: STB Series Straight Liquidtight Connector With Wire Mesh Strain Relief, Size: 3/4 IN, Material: Steel, Finish: Zinc Electroplate, Insulation: Insulated Throat, Dimensions: 1.5 IN Length X 1.5 IN Height, Thread Length: 0.63 IN, Outside Di
STB75SR Application
Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment InstallationSTB75SR Item Features
- Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
- Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
- Stainless steel wire mesh prevents pull out of flexible conduit from fitting and alleviates flexing stress at liquidtight connection
- Suitable for wet locations
- Full, machined tapered threads (NPT)
STB75SR Standards
UL 514B|UL File No. E14814|CSA C22.2 No. 18.3|CSA 065178|Class I, Div 2SKU #2223606Part Number #STB75SRUNSPSC39121420UPC00781381513678

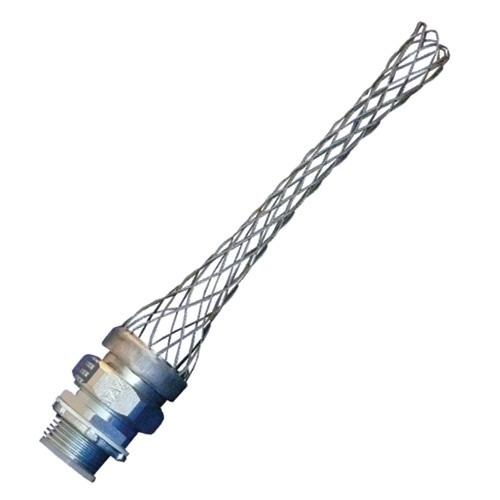

Image provided may only be a representation of final product and may include optional equipment
