Part Number # STB90200
SKU # 105270
Image Disclaimers Message
Brand: Appleton
STB90200

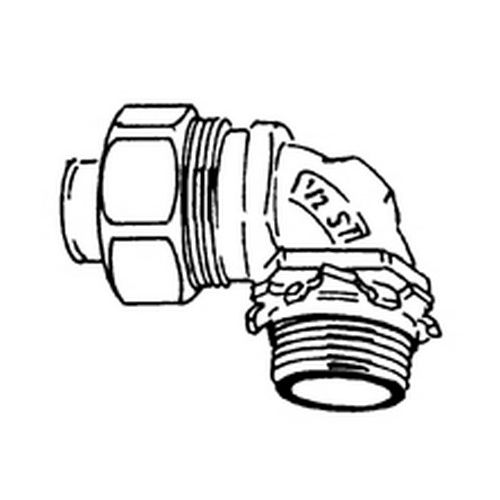

Appleton STB90200 Conduit Connector
Part Number # STB90200
SKU # 105270
$71.24 /  Each
Typical price:$96.89 / Each
Appleton STB90200 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | STB90200 |
| SKU #: | 105270 |
| Angle: | 90, 90 deg |
| Dimensions: | 3.19 in W |
| Finish: | Triple Coated |
| Series: | STB |
| Suitable For Use With: | Liquid Tight Flexible Metallic Conduit, Liquidtight Flexible Metallic Conduit |
| Trade Size: | 2, 2 in |
| Type: | Liquid Tight Oiltight Raintight, Liquidtight Oiltight Raintight |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121420 |
| UPC: | 00781381682206 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$71.24 /  Each
Typical price:$96.89 / Each
Quantity:
- Appleton STB90200 Conduit Connector - Brand: Appleton - Part Number: STB90200 - Appleton Conduit Connector, Liquid Tight Oiltight Raintight, Series: STB, 2 in, 90 deg, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Triple Coated, 3.19 in W - Additional Description: APLE-STB90200 2 IN 90D INSUL LFMC CONN - Catalog Description: STB Series 90 DEG Liquidtight Connector With Insulated Throat, Size: 2 IN, Connection: Threaded X Compression, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Thread Length: 0.69 IN, Standard: Class I, - STB90200 ApplicationMachine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment Installation- STB90200 Item Features- Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
- Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
- Polypropylene sealing ring with locknut standard
- Full, machined tapered threads (NPT)
- Compact design with small turning radius
- Seals out oil, water, dust, dirt and fumes
- Suitable for wet locations
- Chromate/epoxy powder coated/zinc electroplated finish
 - STB90200 StandardsUL 514B|UL File No. E14814|CSA C22.2 No. 18.3|CSA 065178|Class I, Div 2|RoHS CompliantSKU #105270Part Number #STB90200UNSPSC39121420UPC00781381682206
