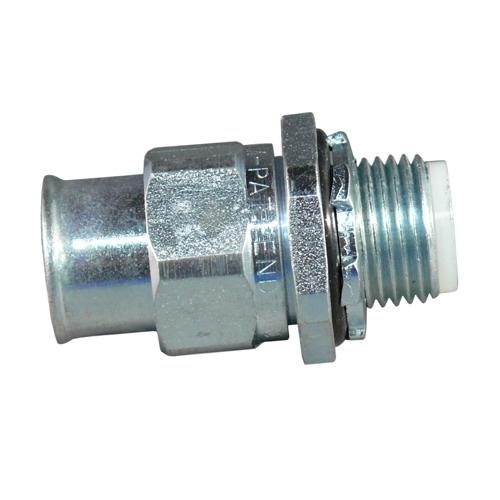

Image provided may only be a representation of
final product and may include optional equipment
STNM75
Appleton STNM75 Conduit Connector
Part Number # STNM75
SKU # 2180635
Appleton STNM75 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | STNM75 |
| SKU #: | 2180635 |
| Angle: | Straight |
| Dimensions: | 2.59 in L x 1.63 in H |
| Series: | STNM |
| Suitable For Use With: | Type A Flexible Non-Metallic Conduit |
| Trade Size: | 3/4, 3/4 in |
| Country of origin: | MX |
| Material: | Steel |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121420 |
| UPC: | 00781381238793 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton STNM75 Conduit Connector
Brand: Appleton
Part Number: STNM75
Appleton Conduit Connector, Series: STNM, 3/4 in, Straight, For Use With: Type A Flexible Non-Metallic Conduit, Steel, 2.59 in L x 1.63 in H
Additional Description: APLE-STNM75 3/4 IN LFNC CONN
Catalog Description: Appleton STNM Series Straight Liquidtight Connector, Size: 3/4 IN, Material: Steel, Insulation: Insulated Throat, Dimensions: 2.59 IN Length X 1.63 IN Height, Thread Length: 0.59 IN, Standard: Class I, Division 2, UL 514B, E14814, CSA C22.2 No. 18
STNM75 Application
Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment InstallationSTNM75 Includes
Locknut and Neoprene O-RingSTNM75 Item Features
- Eliminates common connection problems and assures a liquidtight seal against oil, water, dirt and chemicals
- The positive, pull out proof seal formed by a STNM connector begins with its deep threaded ferrule that bites into the inner wall of the conduit
- The sleeve separates the STNM series apart from ordinary connectors
- The sleeve is held captive within a compression nut that allows it to move freely and self align with the conduit having a slightly irregular surface or varying wall thickness
- The nut rides only on the sleeve and not on the conduit
- It cannot bend or twist the conduit and thereby protects wiring
- When fully tightened, the flared sleeve extends beyond the nut, providing additional protection from flexing
- Ease of assembly and disassembly of STNM connectors permits make up of harnesses in advance for fast, simple connections during production line assemblies
STNM75 Standards
UL 514B|UL File No. E14814|CSA C22.2 No. 18|CSA 065178|Class I, Div 2STNM75 Warranty
LimitedSKU #2180635Part Number #STNM75UNSPSC39121420UPC00781381238793
