Appleton STNM9050 Conduit Connector
Part Number # STNM9050
SKU # 3806

STNM9050
Appleton STNM9050 Conduit Connector
Part Number # STNM9050
SKU # 3806
Appleton STNM9050 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | STNM9050 |
| SKU #: | 3806 |
| Dimensions: | 2-3/8 in L x 1-5/16 in H |
| UNSPSC: | 39121420 |
| UPC: | 00781381238878 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.

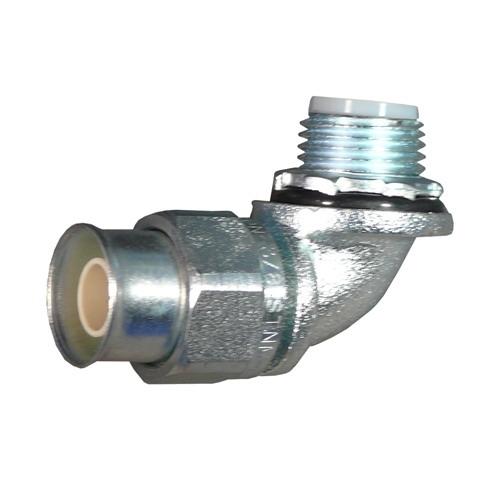

Appleton STNM9050 Conduit Connector
Brand: Appleton
Part Number: STNM9050
Appleton Conduit Connector, Series: STNM, 1/2 in, 90 deg, For Use With: Type A Flexible Non-Metallic Conduit, Steel, 2-3/8 in L x 1-5/16 in H
Additional Description: APLE-STNM9050 1/2 IN 90D LFNC CONN
Catalog Description: Appleton STNM Series 90 DEG Liquidtight Connector, Size: 1/2 IN, Material: Steel, Insulation: Insulated Throat, Thread Length: 0.59 IN, Standard: Class I, Division 2, UL 514B, E14814, CSA C22.2 No. 18, 065178, For Connecting To Type A Flexible N
STNM9050 Application
Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment InstallationSTNM9050 Includes
Locknut and Neoprene O-RingSTNM9050 Item Features
- Eliminates common connection problems and assures a liquidtight seal against oil, water, dirt and chemicals
- The positive, pull out proof seal formed by a STNM connector begins with its deep threaded ferrule that bites into the inner wall of the conduit
- The sleeve separates the STNM series apart from ordinary connectors
- The sleeve is held captive within a compression nut that allows it to move freely and self align with the conduit having a slightly irregular surface or varying wall thickness
- The nut rides only on the sleeve and not on the conduit
- It cannot bend or twist the conduit and thereby protects wiring
- When fully tightened, the flared sleeve extends beyond the nut, providing additional protection from flexing
- Ease of assembly and disassembly of STNM connectors permits make up of harnesses in advance for fast, simple connections during production line assemblies
STNM9050 Standards
UL 514B|UL File No. E14814|CSA C22.2 No. 18|CSA 065178|Class I, Div 2STNM9050 Warranty
LimitedSKU #3806Part Number #STNM9050UNSPSC39121420UPC00781381238878
Image provided may only be a representation of final product and may include optional equipment
