Part Number # T125CG
SKU # 2220362
T125CG

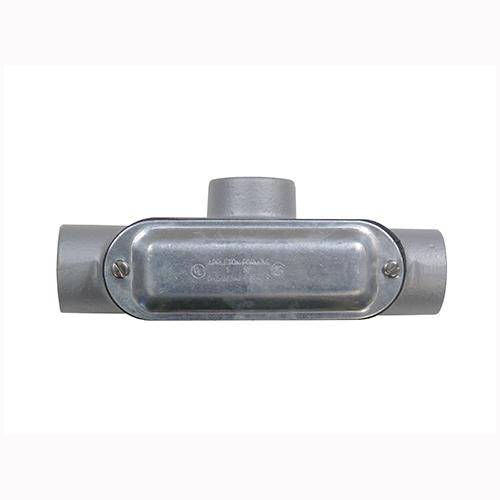

Appleton T125CG Conduit Body
Part Number # T125CG
SKU # 2220362
Appleton T125CG Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | T125CG |
| SKU #: | 2220362 |
| Capacity: | 33, 33 cu-in |
| Dimensions: | 9-1/8 in L x 2-5/8 in H |
| Finish: | Aluminum Enamel |
| Form: | Form 35 |
| Hub Size: | 1-1/4, 1-1/4 in |
| Type: | Type T |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00783126064520 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton T125CG Conduit Body
Brand: Appleton
Part Number: T125CG
O-Z/Gedney Spec 5 Conduit Body, Type T, 1-1/4 in Hub, 3 Hubs, 33 cu-in Capacity, Form 35 Form, Tapered FNPT Connection, Malleable Iron, Aluminum Enamel, 9-1/8 in L x 2-5/8 in H Dimensions
Additional Description: APLE-T125CG T-125 ASSEMBLE W/BS-125S
Catalog Description: OZ-Gedney Spec 5 Type T Conduit Body, Cover And Gasket Assembly, 1-1/4 IN Hub, Length: 9-1/8 IN, 2-5/8 IN Height, Conduit Body: Malleable Iron, Cover: Type BS Steel Zinc Electroplated, Gasket: Type SGN Neoprene, Finish: Aluminum Enamel, Connection
T125CG Application
For use to serve as pulling fittings, make bends in conduit system, provide openings for splicing, connect and change direction of conduit runs, allow connections for branch runs, IMC and rigid conduitT125CG Item Features
- Smooth, rounded integral bushings in hubs protect conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 35 malleable iron Unilets are high tensile strength and ductility
- High corrosion resistance, high impact and shock resistance
- Sizes with flat back design ideal where fitting is mounted flat against surface
- 1/2 to 3 in blank covers are domed for extra wiring space
- Raintight when an Appleton cover and gasket are installed
T125CG Standards
ARRA Compliant|UL 514A File No. E18095|CSA C22.2 No. 18 009795|Federal Specification A-A-50563|NEC/CEC Hazardous Locations Class 1 Division 2 Per NEC Section 501-4(B), NEMA:FB-1, FB-2.10SKU #2220362Part Number #T125CGUNSPSC39131708UPC00783126064520
Image provided may only be a representation of final product and may include optional equipment
