Part Number # T200CG
SKU # 2368039
T200CG

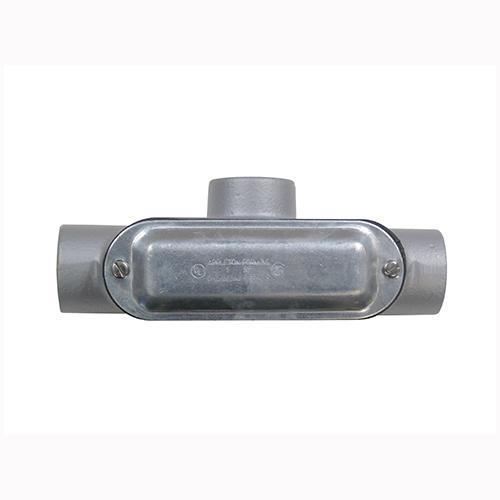

Appleton T200CG Conduit Body
Part Number # T200CG
SKU # 2368039
Appleton T200CG Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | T200CG |
| SKU #: | 2368039 |
| Capacity: | 70 cu-in |
| Dimensions: | 11-7/8 in L x 3-1/2 in H |
| Finish: | Hot Dipped Galvanized/Aluminum Enamel Coated |
| Hub Size: | 2 in |
| Type: | T-Configuration |
| Connection type: | Tapered NPT |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00783126064582 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton T200CG Conduit Body
Brand: Appleton
Part Number: T200CG
O-Z/Gedney Conduit Body, T-Configuration, 2 in Hub, 3 Hubs, 70 cu-in Capacity, Tapered NPT Connection, Malleable Iron, Hot Dipped Galvanized/Aluminum Enamel Coated, 11-7/8 in L x 3-1/2 in H Dimensions
Additional Description: APLE-T200CG (N) 2 IN BODY/CVR/GSKT ASSY T NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Rigid Conduit Body, Access Opening Side, Configuration T, Cover Type Zinc Electroplated Steel, Hub Location Tee, Number of Hubs 3, Hub Size 2 Inch, Size 11-7/8 Inch L x 3-1/2 Inch H, Installation Threaded, Material Hot Dip Galvanized Aluminum Enameled Malleable Iron, Approval UL 514A, CSA C22.2, Used On Rigid Conduit/IMC, Applicable Standard Federal Specification A-A-50563, NEMA FB-1/FB-2.10, Capacity 70 Cu Inch
T200CG Application
For RMC and IMC conduitT200CG Includes
Electro-Zinc Plated Steel CoverT200CG Standards
ARRA Compliant|CSA C22.2,|Federal A-A-50563|NEMA FB-1/FB-2.10|UL 514ASKU #2368039Part Number #T200CGUNSPSC39131708UPC00783126064582
Image provided may only be a representation of final product and may include optional equipment
