Part Number # T75ACG
SKU # 2355750
T75ACG
Appleton T75ACG Conduit Outlet Body
Part Number # T75ACG
SKU # 2355750
Appleton T75ACG Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | T75ACG |
| SKU #: | 2355750 |
| Capacity: | 7.1, 7.1 cu-in |
| Dimensions: | 5-5/8 in L x 1-5/8 in H |
| Enclosure: | NEMA FB-1/FB-2.1, NEMA FB-1/FB-2.10 |
| Finish: | Aluminum Enamel/Epoxy Powder Coated |
| Hub Size: | 3/4, 3/4 in |
| Type: | Type T |
| Connection type: | Tapered FNPT |
| Country of origin: | IN |
| Material: | Die Cast Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00783126064667 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton T75ACG Conduit Outlet Body
Brand: Appleton
Part Number: T75ACG
O-Z/Gedney Conduit Outlet Body, Type T, 3/4 in Hub, 3 Hubs, 7.1 cu-in Capacity, NEMA FB-1/FB-2.1 Enclosure, Tapered FNPT Connection, Die Cast Copper Free Aluminum, Aluminum Enamel/Epoxy Powder Coated, 5-5/8 in L x 1-5/8 in H
Additional Description: APLE-T75ACG 3/4 IN BODY/CVR/GSKT ASSY T
Catalog Description: OZ-Gedney Type T Conduit Body, Cover And Gasket Assembly, 3/4 IN Hub, Length: 5-5/8 IN, 1-5/8 IN Height, Conduit Body: Die-Cast, Copper-Free Aluminum, Cover: Type BS Aluminum, Gasket: Type SGN Neoprene, Finish: Aluminum Enamel, Connection: Tapered FNPT, 3 (6 AWG) Conductors, 7.1 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, NEMA : FB-1, FB-2.10, For Rigid Conduit And IMC
T75ACG Application
Rigid/IMC Conduit ApplicationsT75ACG Item Features
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Suitable for wet locations when used with gasketed covers
T75ACG Standards
UL 514A File No. E18095|C22.2 No. 18/009795 Certified|Federal Specification A-A-50563|Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B)SKU #2355750Part Number #T75ACGUNSPSC39131708UPC00783126064667

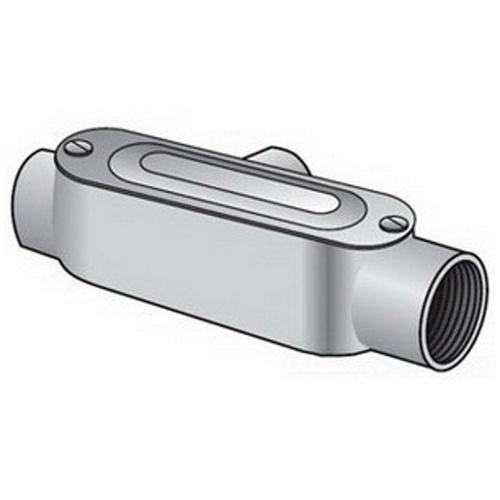

Image provided may only be a representation of final product and may include optional equipment
