T75ACGA

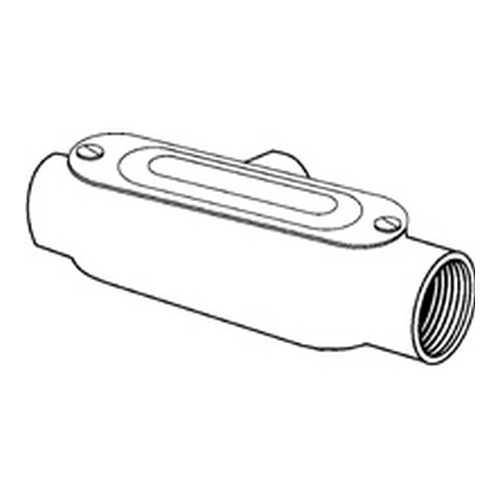

Appleton T75ACGA Conduit Outlet Body
Part Number # T75ACGA
SKU # 294425
Appleton T75ACGA Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | T75ACGA |
| SKU #: | 294425 |
| Capacity: | 7, 7 cu-in |
| Dimensions: | 5.63 in L x 1.63 in H |
| Enclosure: | NEMA FB-1 |
| Finish: | Epoxy Powder Coated |
| Form: | Form 85 |
| Type: | Type T |
| Connection type: | Tapered FNPT |
| Country of origin: | IN |
| Material: | Sand Cast Aluminum |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00781381826129 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton T75ACGA Conduit Outlet Body
Brand: Appleton
Part Number: T75ACGA
Appleton UNILETS Conduit Outlet Body, Type T, 3 Hubs, 7 cu-in Capacity, Form 85 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Sand Cast Aluminum, Epoxy Powder Coated, 5.63 in L x 1.63 in H Dimensions
Additional Description: APLE-T75ACGA 3/4 IN T COND BODY ASSY AL
Catalog Description: Form 85 UNILETS Type T Conduit Outlet Body With Assembled Cover And Gasket, Hub Size: 3/4 IN, Form: 85, Length: 5.63 IN, Height: 1.63 IN, Material: Pressure Cast Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered Female Threaded, S
T75ACGA Application
For Rigid Steel/Aluminum and IMC ConduitT75ACGA Item Features
- Roomy interiors more wiring space
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 85 copper free aluminum UNILETS are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance
- Lightweight aluminum facilitates shipping, handling and installing
- Sizes with flat back design ideal where fitting is mounted flat against surface
- Internal volume and maximum wire capacity clearly marked on castings
- Threaded style is raintight when used with casketed covers
- Blank covers are domed for extra wiring space
T75ACGA Standards
UL 514A/514B/E2527|CSA C22.2 No. 18.3/065183SKU #294425Part Number #T75ACGAUNSPSC39131708UPC00781381826129
