TB150

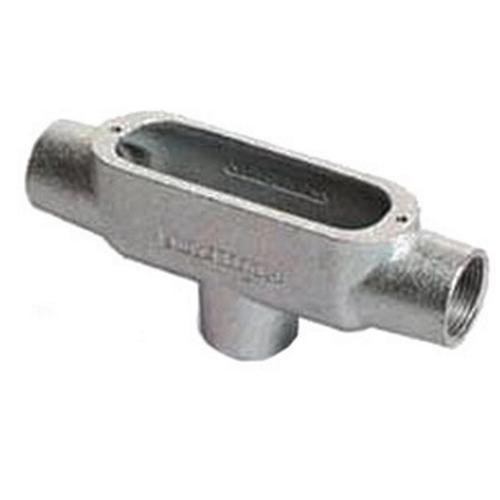

Appleton TB150 Conduit Outlet Body
Part Number # TB150
SKU # 2271570
$57.94 / Each
Typical price:$71.64 / Each
Appleton TB150 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | TB150 |
| SKU #: | 2271570 |
| Capacity: | 36, 36 cu-in |
| Dimensions: | 9-1/4 in L x 2-5/8 in W |
| Enclosure: | NEMA FB-1 |
| Finish: | Zinc Electroplated/Aluminum Enamel |
| Hub Size: | 1-1/2, 1-1/2 in |
| Type: | Type TB |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00783126522761 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$57.94 / Each
Typical price:$71.64 / Each
Quantity:
- O-Z/Gedney Conduit Outlet Body, Type TB, 1-1/2 in Hub, 3 Hubs, 36 cu-in Capacity, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Malleable Iron, Zinc Electroplated/Aluminum Enamel Finish, 9-1/4 in L x 2-5/8 in W Dimensions
TB150 Application
Rigid/IMC Conduit ApplicationsTB150 Item Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 35 malleable iron UNILETS are high tensile strength and ductility
- High corrosion resistance, high impact and shock resistance
- Sizes with flat back design ideal where fitting is mounted flat against surface
- Raintight when an Appleton cover and gasket are installed
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
- Malleable iron suitable for use in concrete
TB150 Standards
ARRA Compliant|UL 514A File No. E18095|C22.2 No. 18/009795 Certified|Federal Specification A-A-50563|Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B)SKU #2271570Part Number #TB150UNSPSC39131708UPC00783126522761
