Part Number # TB18
SKU # 2445689
TB18
Appleton TB18
Part Number # TB18
SKU # 2445689
Appleton TB18 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | TB18 |
| SKU #: | 2445689 |
| Capacity: | 6 cu-in |
| Dimensions: | 5.94 in L x 2.59 in H |
| Enclosure: | NEMA FB-1 |
| Finish: | Triple Coated |
| Form: | Form 8 |
| Hub Size: | 1/2 in |
| Type: | Type TB |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Grayloy Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00781381744393 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton TB18
Brand: Appleton
Part Number: TB18
Appleton® UNILETS™ Conduit Outlet Body, Type TB, 1/2 in Hub, 3 Hubs, 6 cu-in Capacity, Form 8 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Grayloy Iron, Triple Coated Finish, Gray, 5.94 in L x 2.59 in H Dimensions
Additional Description: APLE-TB18 1/2 TYPE TB FORM 8 BODY
Catalog Description: IMC/Rigid Conduit Body, Access Opening Tee Back, Configuration TB, Cover Type Zinc Electroplated Chromate Epoxy Powder Coated Gray Cast Iron, Hub Location Tee, Number of Hubs 3, Hub Size 1/2 Inch, Size 5.94 Inch L x 2.59 Inch H, Installation Threaded, Material Zinc Electroplated Chromate Epoxy Powder Coated Gray Iron Body, Neoprene Gasket, Stainless Steel Screw, Form Type Form 8, Approval UL 514A/514B/E2527, CSA C22.2, Used On IMC/Rigid Conduit, Applicable Standard NEC/CEC, NEMA FB-1, Capacity 6 Cu Inch
TB18 Application
For Rigid Steel and IMC ConduitTB18 Item Features
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Completely interchangeable with Crouse-Hinds Form 8 bodies, gaskets and covers
- Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
- Fits flush and snug against flat surfaces for more stable installation
- Smooth hub bushings and cover openings protect conductor insulation
- Smooth hub openings allow easy conduit joining
TB18 Standards
UL 514A/514B/E2527|CSA C22.2 No. 18.3/065183SKU #2445689Part Number #TB18UNSPSC39131708UPC00781381744393

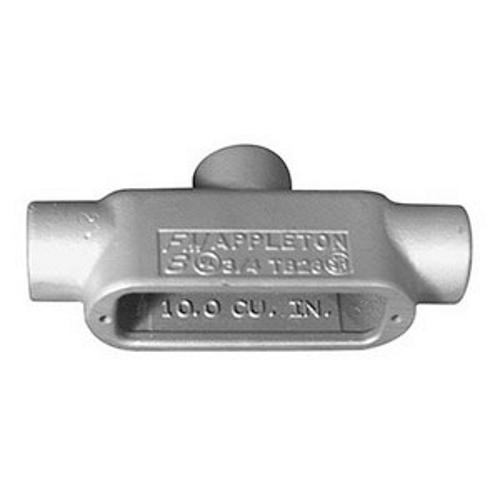

Image provided may only be a representation of final product and may include optional equipment
