Part Number # TC050028NB
SKU # 2275218

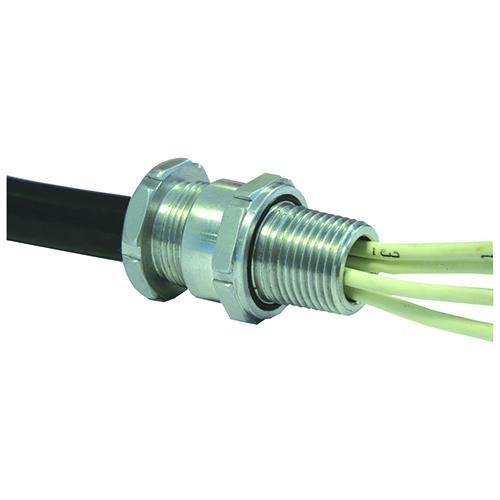

Image provided may only be a representation of
final product and may include optional equipment
TC050028NB
Appleton TC050028NB Cable Connector
Part Number # TC050028NB
SKU # 2275218
Appleton TC050028NB Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | TC050028NB |
| SKU #: | 2275218 |
| Cable Openings: | 0.13 to 0.28 in No Insert |
| Dimensions: | 1.3 in Dia x 1.57 in L |
| Finish: | Nickel Plated |
| Temperature Rating (Degrees F): | -76 to 230, -76 to 230 deg F |
| Trade Size: | 1/2, 1/2 in |
| Type: | Explosionproof Type TC Straight |
| Cable type: | Tray |
| Connection type: | NPT |
| Country of origin: | GB |
| Material: | Brass |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121431 |
| UPC: | 00781381298636 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton TC050028NB Cable Connector
Brand: Appleton
Part Number: TC050028NB
Appleton Cable Connector, Explosionproof Type TC Straight, 1/2 in, Cable Openings: 0.13 to 0.28 in No Insert, Tray Cable, NPT, Brass, Nickel Plated, -76 to 230 deg F, 1.3 in Dia x 1.57 in L
Additional Description: APLE-TC050028NB NKL BRS TRAY CABLE FTG 050NPT
Catalog Description: Tray Cable Connector, Type Straight, Hub Size 1/2 Inch, Cable Type Tray Cable, Cable Size 0.13 to 0.28 Inch (No Insert), Diameter 1.3 Inch, Length 1.57 Inch, Constructional Feature Explosionproof, Material Electroless Nickel Plated Brass, Application Ordinary, Dry, Wet, Hazardous and Non-Hazardous Location, Approval UL 514B/2225, CSA C22.2, CAN, CSA, Enclosure Type Class I Div 2 Group A B C D, Class II Div 2 Group E F G, Class III Div 2, NEMA 4X, IP66/IP67/IP68, Continuous Operating Temperature -60 to 110 Deg C, Minimum Thread Length 0.78 Inch
TC050028NB Application
Food Processing, Petrochemical, Wastewater Treatment, Pulp and Paper and Chemical Manufacturing Facilities ApplicationsTC050028NB Item Features
- The unique use of the seal insert, enables each gland size to terminate the widest range available in a single hub size
- Jacket sealing technique compensating displacement seal, cable outer jacket
TC050028NB Standards
CSA 22.2 No. 30|CAN Compliant|CSA E60079-0|CSA E60079-7ATEX|IECCx Certified|cCSAus CSA.09.2220601X|UL 514B|UL 2225SKU #2275218Part Number #TC050028NBUNSPSC39121431UPC00781381298636
