TMC2250272NB
Appleton TMC2250272NB Cable Gland Connector
Part Number # TMC2250272NB
SKU # 2357822
Appleton TMC2250272NB Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | TMC2250272NB |
| SKU #: | 2357822 |
| Cable type: | Jacketed Metal Clad/MC/MC-HL/Corrugated Interlocked Aluminum/Steel Armor/Continuously Welded Armor |
| Material: | Copper-Free Brass |
| UNSPSC: | 39121431 |
| UPC: | 00781381301114 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton TMC2250272NB Cable Gland Connector
Brand: Appleton
Part Number: TMC2250272NB
Appleton Cable Gland Connector, Series: TMC2, 2-1/2 in, Jacketed Metal Clad/MC/MC-HL/Corrugated Interlocked Aluminum/Steel Armor/Continuously Welded Armor Cable, NPT, 360 deg, Copper-Free Brass, Nickel Plated, -60 to 110 deg C
Additional Description: APLE-TMC2250272NB (N) TMC2 CABLE GLAND NI/BR 250NPT NON-CANCELABLE, NON-RETURNABLE
Catalog Description: TMC2 Series Cable Gland Connector, Size: 2-1/2 IN, Material: Copperfree Brass, Finish: Nickel Plated, Enclosure: IP66, Nema Rating: NEMA 4X, Temperature Rating: -60 To 110 DEG C, Connection: NPT, Dimensions: 3.54 IN Across Flat X 3.
TMC2250272NB Application
For hazardous locations and for use on horizontal or vertical runsTMC2250272NB Item Features
- Simplified 2-piece design
- Integral O-ring face seal providing: 4X and IP66
- Independent sealing and armor clamping
- True 360 deg grounding
- Removable cable armor end stop accommodates larger insulated conductors
- Aluminum connectors 1/2, 3/4 and 1 in supplied with zinc plated steel locknut
- Superior pull out prevention
- Compact slim profile
- Reduced installation time (no disassembly required)
- Widest cable acceptance range
- Re-usable design
- Additional integral deluge proof seal for protection in extreme offshore and onshore environments
- Bodies, sleeve and gland nut: copper-free aluminum, nickel plated brass or stainless steel
- Stainless steel grounding spring
- LSF-TPE halogen free bushing
- Nylon end stop washer
- FKM O-ring
- TMC2 connectors provide a means for terminating jacketed type MC cable, forming a mechanical water tight connection and providing ground continuity for cable armor
- 3.54 in across flat x 3 in
TMC2250272NB Standards
CSA C22.2 #174/249506|NEC/CEC Class I Division 2 Group A B C D/Class I Zone 1 and 2 AExe II AEx tA IIC/Class I Zone 1 and 2 Exe II Ex tA IIC/Class II Division 1 and 2 Group E F G/Class III, Division 1 and 2|NEMA 4X/IP66|UL 514B/2225SKU #2357822Part Number #TMC2250272NBUNSPSC39121431UPC00781381301114

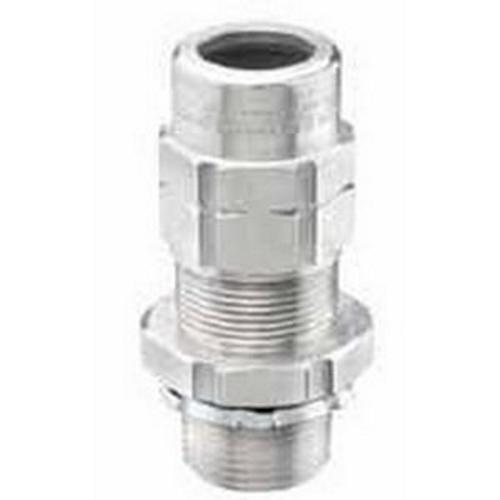

Image provided may only be a representation of final product and may include optional equipment
