Appleton TMC2X050075AX Cable Gland Connector
Part Number # TMC2X050075AX
SKU # 2414245
Appleton TMC2X050075AX Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | TMC2X050075AX |
| SKU #: | 2414245 |
| Cable Openings: | 1/2 to 3/4 in |
| Dimensions: | 1.32 in Dia x 3.23 in L |
| Series: | TMC2X |
| Temperature Rating (Degrees F): | -60 to 85 deg C |
| Trade Size: | 1/2 in |
| Type: | 2-Piece Straight |
| Cable type: | Teck/Jacketed MC |
| Connection type: | Thread |
| Country of origin: | IN |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121431 |
| UPC: | 00078138137730 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton TMC2X050075AX Cable Gland Connector
Brand: Appleton
Part Number: TMC2X050075AX
Appleton® Cable Connector, 2-Piece Straight, Series: TMC2X, 1/2 in Trade, Cable Openings: 1/2 to 3/4 in, Teck/Jacketed MC Cable, Thread Connection, Copper Free Aluminum, -60 to 85 deg C, 1.32 in Dia x 3.23 in L Dimensions
Additional Description: APLE-TMC2X050075AX TMC2X CBL GLND AL 1/2 W/ RESIN
Catalog Description: Metal Clad Cable Connector, Type 2-Piece, Straight, Hub Size 1/2 Inch, Throat Type Bushing, Gland Nut, Cable Type Jacketed Metal Clad, Cable Size 0.5 to 0.75 Inch, Diameter 1.32 Inch, Length 3.23 Inch, Constructional Feature Explosionproof, Dust-Ignitionproof, Watertight, Material Copper free Aluminum (Body/Sleeve/Gland Nut), Stainless Steel (Grounding Spring), Halogen Free LSF-TPE (Bushing), Nylon (End Stop Washer), Application Hazardous Location, Approval UL 514B/2225, CSA C22.2, Enclosure Type Class I Div 1 and 2 Group A B C D, Class I Zone 1 AEx d IIC AEx e II AEx tA IIC, Class I Zone 1 EX e II Ex tA IIC, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 4X, IP66, Continuous Operating Temperature -60 to 85 Deg C, Minimum Thread Length 0.78 Inch
TMC2X050075AX Application
Hazardous Location ApplicationsTMC2X050075AX Item Features
- For jacketed metal clad cable
- Provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor
- For use on horizontal or vertical runs
- TMC2X connectors are designed for use with the following cables MC/MC-HL, corrugated interlocked aluminum/steel armor, continuously welded armor cables
- Simplified two piece design

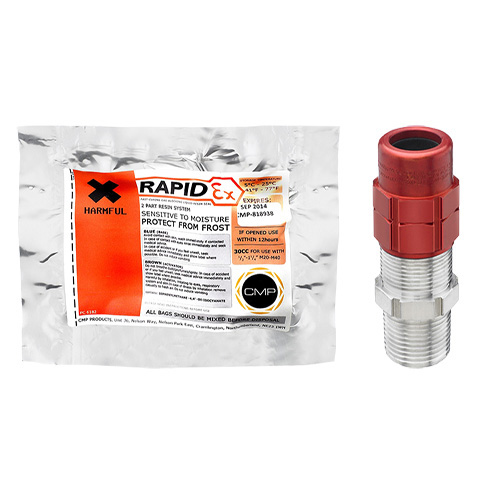

- Utilizes RapidEx high speed liquid resin sealing compound included with each gland
- Independent sealing and armor clamping/true 360 deg grounding
- Removable cable armor end stop accommodates larger insulated conductors
- Superior pull out prevention
- Compact slim profile
- Widest cable acceptance range
- Disconnectable design
- Additional integral deluge proof seal for protection in extreme offshore and onshore environments
- Copper free (4/10 of 1% maximum) aluminum bodies, nickel plated brass or stainless steel sleeve and gland nut, stainless steel grounding spring, LSF-TPE (halogen free) bushing, nylon end stop washer
- 1/2 to 3/4 in cable Dia
- 0.55 in cable armor Dia
- Explosionproof, dust-ignition proof, watertight
TMC2X050075AX Standards
UL 514B/2225|C22.2 No. 174, 249506|Class I, Div 1, 2, Groups A, B, C, D, Class I, Zone 1, AEx d IIC, AEx e II, AEx tA IIC, Class I, Zone 1, EX e II, Ex tA IIC, Class II, Div 1, 2, Groups E, F, G|NEC/CEC Class III, Div 1, 2|NEMA 4X/IP66 CompliantSKU #2414245Part Number #TMC2X050075AXUNSPSC39121431UPC00078138137730
Image provided may only be a representation of final product and may include optional equipment
