Appleton TMCX075A TMCX Explosion proof Cable Gland Connector
Part Number # TMCX075A
SKU # 2215885

TMCX075A
Appleton TMCX075A TMCX Explosion proof Cable Gland Connector
Part Number # TMCX075A
SKU # 2215885
Appleton TMCX075A Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | TMCX075A |
| SKU #: | 2215885 |
| UNSPSC: | 39121431 |
| UPC: | 00781381083348 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton TMCX075A TMCX Explosion proof Cable Gland Connector
Brand: Appleton
Part Number: TMCX075A
Appleton Cable Gland Connector, Explosion proof, Series: TMCX, 3/4 in, Cable Openings: 0.67 to 1.04 in, JMC/MC/Teck Cable, NPT, 360 deg, Copper Free Aluminum, 2.79 in L
Additional Description: APLE-TMCX075A 3/4 IN HAZ LOC MC CONN ALUM
Catalog Description: TMCX Series Cable Gland Connector, Size: 3/4 IN (M25), Material: Copperfree Aluminum, Enclosure: IP66, Nema Rating: NEMA 4X, Connection: NPT, Dimensions: 2.79 IN Length, Cable Armor Diameter: 0.59 - 0.76 IN End Stop In, 0.76 - 0.92 IN En
TMCX075A Application
For jacketed metal clad, MC/MC-HL, corrugated interlocked aluminum/steel armor, continuously welded armor cableTMCX075A Item Features
- Independent sealing and armor clamping
- Superior pull out prevention
- Compact slim profile
- Widest cable acceptance range
- Supplied complete with epoxy sealing compound
- Additional integral deluge proof seal for protection in extreme offshore and onshore environments
- Provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor
- For use on horizontal or vertical run
TMCX075A Standards
C22.2 No. 174, No. 249506, 025875 Certified|NEC/CEC Class I, Division 2, Groups A, B, C and D, Class I, Zones 1 AExd IIC, Class II, Division 1 and 2, Groups E, F and G, Class III, IP66, UL 514B, 2225, 83827SKU #2215885Part Number #TMCX075AUNSPSC39121431UPC00781381083348

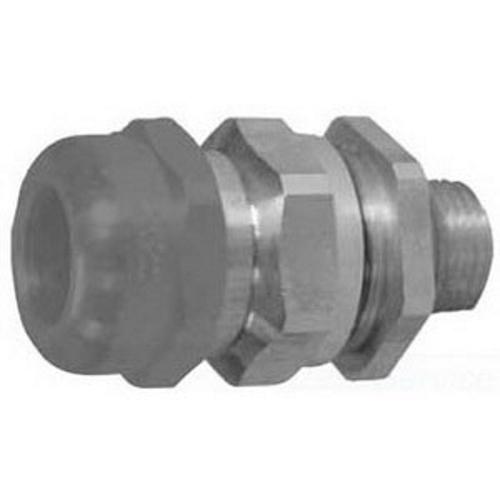

Image provided may only be a representation of final product and may include optional equipment
