Part Number # UCB9P
SKU # 2420777
UCB9P
Appleton UCB9P Unicode 2 Contact Block
Part Number # UCB9P
SKU # 2420777
Appleton UCB9P Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | UCB9P |
| SKU #: | 2420777 |
| Contact Configuration: | 1NC |
| Contact Rating: | 10 A at 500 V AC, 1 A at 110 V DC, 10 A at 500 VAC, 1 A at 110 VDC |
| Operator Type: | Push Button |
| Type: | 1-Pole |
| Contact material: | Silver Alloy |
| Country of origin: | RO |
| Material: | Polyamide |
| Mounting type: | Panel |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39122221 |
| UPC: | 00078138126837 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton UCB9P Unicode 2 Contact Block
Brand: Appleton
Part Number: UCB9P
Appleton® Unicode™ 2 Contact Block, 1-Pole, 1NC Contact Configuration, 10 A at 500 VAC, 1 A at 110 VDC Contact, Silver Alloy Contact, Pushbutton Operator, Panel Mounting, Polyamide
Additional Description: APLE-UCB9P CNT BLK 1NC UNICODE II PNL
Catalog Description: Push Button Contact Block, Type Contact Block, Used On Unicode 2 Series 1 Pole Contact Block, Enclosure Zone 1 and 2-21 and 22, Ex II 2 DG, Mounting Panel, Capacity 3.66 Cu Inch, Contact Configuration 1NC, Weight 0.071 Lb
UCB9P Application
For safety enclosuresUCB9P Standards
NEC Certified|CEC Compliant|ATEX Compliant|IECEx Compliant|CAN/CSA C22.2 No. 0-M91|CSA No. 14-05|CSA No. 94-M91|CSA No. 213-M1987|CSA No. 60079|UL 508|UL 50E|UL 60079-0|UL 60079-1|UL 60079-7|ANSI/ISA 12.12.01-2011|ANSI/ISA 61241-0 (12.10.02)-2006|ANSI/ISA 61241-1(12.10.03)-2006|CSA 2358701SKU #2420777Part Number #UCB9PUNSPSC39122221UPC00078138126837

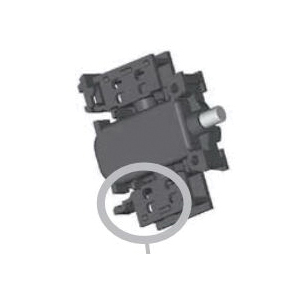

Image provided may only be a representation of final product and may include optional equipment
