Part Number # UNF100NR
SKU # 3906
Image provided may only be a representation of
final product and may include optional equipment
UNF100NR

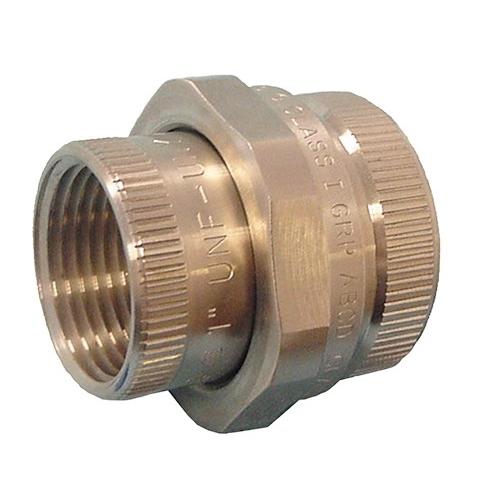

Appleton UNF100NR Conduit Union
Part Number # UNF100NR
SKU # 3906
Appleton UNF100NR Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | UNF100NR |
| SKU #: | 3906 |
| Dimensions: | 2 in OD x 1.72 in L |
| Finish: | Zinc Electroplated |
| Series: | UNF |
| Size: | 1, 1 in |
| Suitable For Use With: | IMC/Threaded Rigid Metallic Conduit |
| Type: | Dust-Ignitionproof Explosionproof |
| Country of origin: | MX |
| Material: | Steel |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131707 |
| UPC: | 00781381234146 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton UNF100NR Conduit Union
Brand: Appleton
Part Number: UNF100NR
Appleton UNILETS Conduit Union, Dust-Ignitionproof Explosionproof, Series: UNF, 1 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Steel, Zinc Electroplated, 2 in OD x 1.72 in L
Additional Description: APLE-UNF100NR 1 UNION CONNECTOR TYPE UNF
Catalog Description: UNILETS UNF Union, Trade Size: 1 IN, Outside Diameter: 2 IN, Length: 1.72 IN, Flexibility: Rigid And IMC, Material: Steel, Connection: Female Threaded, Finish: Zinc Electroplate, Standard: UL 886 (1203), UL File Number E10444, UL Listed
UNF100NR Application
For connecting conduit to conduitUNF100NR Item Features
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces
- Facilitates modifications, permits removal of enclosures without turning or removal of conduit
- Female threaded coneection
UNF100NR Standards
UL 886|UL 1203|UL File No. E10444|Class I, Div 1 and 2 Groups A, B, C, D|Class II, Div 1 and 2 Groups E, F, G|Class III|CSA C22.2 No. 25/30|CSA 065181SKU #3906Part Number #UNF100NRUNSPSC39131707UPC00781381234146
