Part Number # UNF125
SKU # 2429831
UNF125

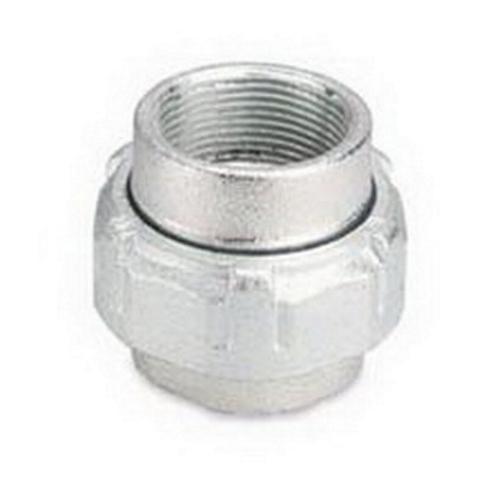

Appleton UNF125 Electrical Conduit Coupling
Part Number # UNF125
SKU # 2429831
Appleton UNF125 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | UNF125 |
| SKU #: | 2429831 |
| Dimensions: | 2-3/4 in OD x 2-1/4 in L |
| Finish: | Zinc Electroplated |
| Series: | UNF |
| Size: | 1-1/4 in |
| Suitable For Use With: | IMC/Rigid Conduit |
| Type: | Dust-Ignitionproof Explosionproof |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131707 |
| UPC: | 00078312655206 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton UNF125 Electrical Conduit Coupling
Brand: Appleton
Part Number: UNF125
O-Z/Gedney Conduit Union, Dust-Ignitionproof Explosionproof, Series: UNF, 1-1/4 in, For Use With: IMC/Rigid Conduit, Malleable Iron, Zinc Electroplated, 2-3/4 in OD x 2-1/4 in L
Additional Description: APLE-UNF125 1-1/4 IN IRON UNION
Catalog Description: OZ-Gedney Type UNF Conduit Union, Trade Size: 1-1/4 IN, 2-3/4 IN Outside Diameter, Length: 2-1/4 IN, Flexibility: RMC And IMC, Malleable Iron, Connection: Tapered FNPT, Third Party Certification: UL File Number E-34997 Listed For Class I, Division
UNF125 Application
For joining conduit to conduitUNF125 Item Features
- Allows future access and removal of system components without turning or removing conduit
- Female to female threaded tapered connection
UNF125 Standards
ARRA Compliant|UL File No. E-34997|Class I, Div 1 and 2, Groups B, C, D, Class I, Zone and, 2, Groups IIA, IIB + H2, Class II, Div 1 and 2, Groups E, F, G Class III|CSA 009795|UL 886|CSA C22.2 No. 30|NEC Articles 500-503/505|Military Specification Mil-F28675SKU #2429831Part Number #UNF125UNSPSC39131707UPC00078312655206
Image provided may only be a representation of final product and may include optional equipment
