Part Number # UNF200NRA
SKU # 2384770
UNF200NRA
Appleton UNF200NRA Unilets Conduit Union
Part Number # UNF200NRA
SKU # 2384770
Appleton UNF200NRA Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | UNF200NRA |
| SKU #: | 2384770 |
| Dimensions: | 3.72 in OD x 2.31 in L |
| Finish: | Natural |
| Series: | UNF |
| Size: | 2 in |
| Suitable For Use With: | IMC/Threaded Rigid Metallic Conduit |
| Type: | Dust-Ignitionproof Explosionproof |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131707 |
| UPC: | 00078138125771 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton UNF200NRA Unilets Conduit Union
Brand: Appleton
Part Number: UNF200NRA
Appleton UNILETS Conduit Union, Dust-Ignitionproof Explosionproof, Series: UNF, 2 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Copper Free Aluminum, Natural, 3.72 in OD x 2.31 in L
Additional Description: APLE-UNF200NRA 2 UNION CONNECTOR TYPE UNF
Catalog Description: Appleton UNF200NR-A UNILETS UNF Union, Trade Size: 2 IN, Outside Diameter: 3.72 IN, Length: 2.31 IN, Flexibility: Rigid And IMC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Connection: Female Threaded, Finish: Natural, Standard: UL 886 (1203),
UNF200NRA Application
For connecting conduit to conduitUNF200NRA Item Features
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces
- Facilitates modifications, permits removal of enclosures without turning or removal of conduit
- Female threaded coneection
UNF200NRA Standards
UL 886|UL 1203|UL File No. E10444|Class I, Div 1 and 2 Groups A, B, C, D, Class II, Div 1 and 2 Groups E, F, G, Class III|CSA C22.2 No. 25/30|CSA 065181SKU #2384770Part Number #UNF200NRAUNSPSC39131707UPC00078138125771

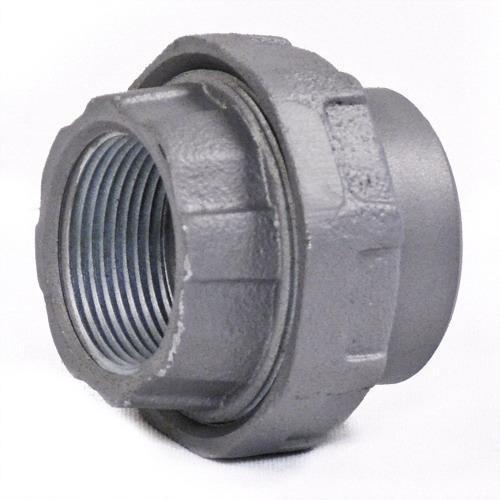

Image provided may only be a representation of final product and may include optional equipment
