Part Number # UNF50
SKU # 2212655
UNF50
Appleton UNF50 Conduit Union
Part Number # UNF50
SKU # 2212655
Appleton UNF50 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | UNF50 |
| SKU #: | 2212655 |
| Dimensions: | 1.19 in OD x 2.94 in L |
| Finish: | Zinc Electroplated |
| Series: | UNF |
| Size: | 1/2, 1/2 in |
| Suitable For Use With: | IMC/Threaded Rigid Metallic Conduit |
| Type: | Dust-Ignitionproof Explosionproof Standard |
| Country of origin: | MX |
| Material: | Steel |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131707 |
| UPC: | 00781381693806 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton UNF50 Conduit Union
Brand: Appleton
Part Number: UNF50
Appleton UNILETS Conduit Union, Dust-Ignitionproof Explosionproof Standard, Series: UNF, 1/2 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Steel, Zinc Electroplated, 1.19 in OD x 2.94 in L
Additional Description: APLE-UNF50 1/2 FEMALE-FEMALE X-PROOF
Catalog Description: UNILETS UNF Standard Expansion Union, Trade Size: 1/2 IN, Outside Diameter: 1.19 IN, Length: 2.94 IN Overall Length At Maximum Expansion, Flexibility: Rigid And IMC, Material: Steel, Connection: Female Threaded, Maximum Expansion: 1/2 IN,
UNF50 Application
For connecting conduit to conduitUNF50 Item Features
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- One piece design eliminates need for disassembly during installation
- Telescoping cylinder within cylinder design permits expansion or contraction
- Small external diameters excellent in restricted areas in wiring of pumps, motors and other equipment
- Internal phosphor bronze bonding jumper ring assures positive ground between telescoping cylinders
- Expansion unions compensate for expansion and contraction of conduit
- Female threaded connection
UNF50 Standards
UL 886|UL 1203|UL File No. E10444|Class I, Div 1 and 2 Groups C, D, Class II, Div 1 and 2 Groups E, F, G, Class III|CSA C22.2 No. 25/30|CSA 065181SKU #2212655Part Number #UNF50UNSPSC39131707UPC00781381693806

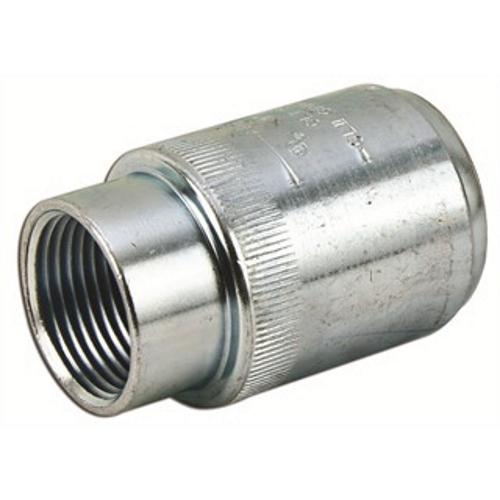

Image provided may only be a representation of final product and may include optional equipment
