Part Number # UNF75S
SKU # 2409836
UNF75S

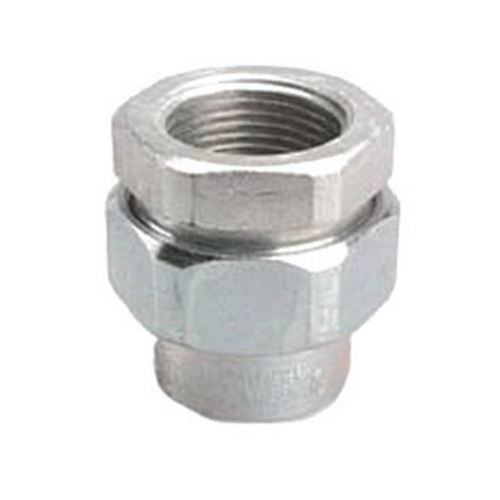

Appleton UNF75S Electrical Conduit Coupling
Part Number # UNF75S
SKU # 2409836
Appleton UNF75S Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | UNF75S |
| SKU #: | 2409836 |
| Dimensions: | 1-7/8 in OD x 1-3/4 in L |
| Finish: | Zinc Electroplated |
| Series: | UNF |
| Size: | 3/4 in |
| Suitable For Use With: | IMC/Rigid Conduit |
| Type: | Dust-Ignitionproof Explosionproof |
| Country of origin: | MX |
| Material: | Steel |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131707 |
| UPC: | 00078312655202 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton UNF75S Electrical Conduit Coupling
Brand: Appleton
Part Number: UNF75S
O-Z/Gedney Conduit Union, Dust-Ignitionproof Explosionproof, Series: UNF, 3/4 in, For Use With: IMC/Rigid Conduit, Steel, Zinc Electroplated, 1-7/8 in OD x 1-3/4 in L
Additional Description: APLE-UNF75S 3/4 IN STL UNION
Catalog Description: Rigid Conduit Union, Type Female/Female, Material Zinc Plated Steel, Trade Size 3/4 Inch, Diameter 1-7/8 Inch, Length 1-3/4 Inch, Approval UL 886, CSA C22.2, Applicable Standard NEC 500 to 503/505, Application Hazardous Location, Constructional Feature Explosionproof, Dust Ignitionproof, Enclosure Class I Div 1 2 Groups A B C D, Class I Zone 1 2 Groups IIA IIB IIC, Class II Div 1 2 Groups E F G, Class III
UNF75S Application
For joining conduit to conduitUNF75S Item Features
- Allows future access and removal of system components without turning or removing conduit
- Tapered female to female Threaded connection
UNF75S Standards
UL File No. E-34997, Class I, Div 1 and 2, Groups B, C, D, Class I, Zone and, 2, Groups IIA, IIB + H2, Class II, Div 1 and 2, Groups E, F, G Class III|CSA 009795|UL 886|CSA C22.2 No. 30|NEC Articles 500-503, 505|Military Specification Mil-F28675SKU #2409836Part Number #UNF75SUNSPSC39131707UPC00078312655202
Image provided may only be a representation of final product and may include optional equipment
