UNY300R
Appleton UNY300R
Part Number # UNY300R
SKU # 2469865
Appleton UNY300R Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | UNY300R |
| SKU #: | 2469865 |
| UNSPSC: | 39131707 |
| UPC: | 00781381696609 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton UNY300R
Brand: Appleton
Part Number: UNY300R

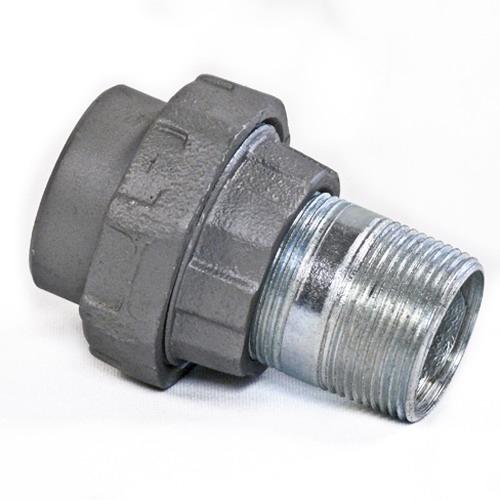

Appleton® UNILETS® Conduit Union, Dust-Ignitionproof Explosionproof, Series: UNY, 3 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated, 5.38 in OD x 4.81 in L
Additional Description: APLE-UNY300R 3 TYPE UNYS EXPL PROOF
Catalog Description: UNILETS UNY Union, Trade Size: 3 IN, Outside Diameter: 5.38 IN, Length: 4.81 IN, Flexibility: Rigid And IMC, Material: Malleable Iron, Connection: Male Threaded X Female Threaded, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy
UNY300R Application
For connecting conduit to enclosureUNY300R Item Features
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces
- Facilitates modifications, permits removal of enclosures without turning or removal of conduit
- Male/female threaded connection
- Chromate/epoxy powder coated/zinc electroplated finish
UNY300R Standards
UL 886|UL 1203|UL File No. E10444|Class I, Div 1 and 2 Groups A, B, C, D, Class II, Div 1 and 2 Groups E, F, G, Class III|CSA C22.2 No. 25/30|CSA 065181SKU #2469865Part Number #UNY300RUNSPSC39131707UPC00781381696609
Image provided may only be a representation of final product and may include optional equipment
