Part Number # UNYL100
SKU # 2345058
UNYL100
Appleton UNYL100 Conduit Union
Part Number # UNYL100
SKU # 2345058
Appleton UNYL100 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | UNYL100 |
| SKU #: | 2345058 |
| Dimensions: | 1.75 in OD x 4.69 in L |
| Finish: | Zinc Electroplated |
| Series: | UNY |
| Size: | 1, 1 in |
| Suitable For Use With: | IMC/Threaded Rigid Metallic Conduit |
| Type: | Dust-Ignitionproof Explosionproof |
| Country of origin: | MX |
| Material: | Steel |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131707 |
| UPC: | 00781381697002 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

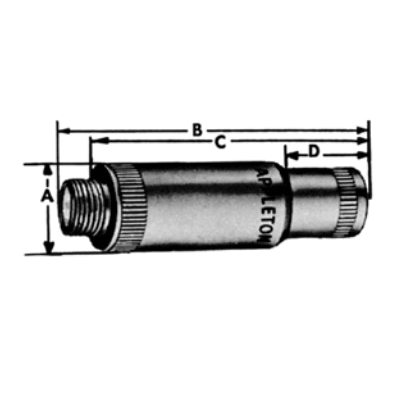

Appleton UNYL100 Conduit Union
Brand: Appleton
Part Number: UNYL100
Appleton UNILETS Conduit Union, Dust-Ignitionproof Explosionproof, Series: UNY, 1 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Steel, Zinc Electroplated, 1.75 in OD x 4.69 in L
Additional Description: APLE-UNYL100 (N) UNION X-PROOF 1 MALE-FE LONG NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Explosionproof Conduit Union, Type Long, Connection Type Male to Male, Trade Size 1 Inch, Diameter 1.75 Inch, Maximum Length 4.69 Inch, Material Zinc Electroplated Steel, Enclosure Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, Approval UL 886, Application Joining Conduit and Connecting Conduit to Enclosures, Facilitates Modification, Permit Removal of Enclosures Expansion and Contraction of Conduit
UNYL100 Application
For connecting conduit to enclosureUNYL100 Item Features
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- One piece design eliminates need for disassembly during installation
- Telescoping cylinder within cylinder design permits expansion or contraction
- Small external diameters excellent in restricted areas in wiring of pumps, motors and other equipment
- Internal phosphor bronze bonding jumper ring assures positive ground between telescoping cylinders
- Expansion unions compensate for expansion and contraction of conduit
- Male to male connection
UNYL100 Standards
UL 886|UL 1203|UL File No. E10444|Class I, Div 1 and 2 Groups C, D, Class II, Div 1 and 2 Groups E, F, G, Class III|CSA C22.2 No. 25/30|CSA 065181SKU #2345058Part Number #UNYL100UNSPSC39131707UPC00781381697002
Image provided may only be a representation of final product and may include optional equipment
