Part Number # UNYL75
SKU # 2445146
UNYL75
Appleton UNYL75
Part Number # UNYL75
SKU # 2445146
Appleton UNYL75 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | UNYL75 |
| SKU #: | 2445146 |
| Dimensions: | 1.44 in OD x 4.28 in L |
| Finish: | Zinc Electroplated |
| Series: | UNY |
| Size: | 3/4 in |
| Suitable For Use With: | IMC/Threaded Rigid Metallic Conduit |
| Type: | Dust-Ignitionproof Explosionproof Long |
| Country of origin: | MX |
| Material: | Steel |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131707 |
| UPC: | 00781381696951 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton UNYL75
Brand: Appleton
Part Number: UNYL75
Appleton® UNILETS® Conduit Union, Dust-Ignitionproof Explosionproof Long, Series: UNY, 3/4 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Steel, Zinc Electroplated, 1.44 in OD x 4.28 in L
Additional Description: APLE-UNYL75 UNION X-PROOF 3/4 MALE-FE LONG
Catalog Description: UNILETS UNF Long Expansion Union, Trade Size: 3/4 IN, Outside Diameter: 1.44 IN, Length: 4.28 IN Overall Length At Maximum Expansion, Flexibility: Rigid And IMC, Material: Steel, Connection: Male Threaded, Maximum Expansion: 1.09 IN, Dime
UNYL75 Application
For connecting conduit to enclosureUNYL75 Item Features
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- One piece design eliminates need for disassembly during installation
- Telescoping cylinder within cylinder design permits expansion or contraction
- Small external diameters excellent in restricted areas in wiring of pumps, motors and other equipment
- Internal phosphor bronze bonding jumper ring assures positive ground between telescoping cylinders
- Expansion unions compensate for expansion and contraction of conduit
- Male threaded connection
UNYL75 Standards
UL 886|UL 1203|UL File No. E10444|Class I, Div 1 and 2 Groups C, D|Class II, Div 1 and 2 Groups E, F, G|Class III|CSA C22.2 No. 25/30|CSA 065181SKU #2445146Part Number #UNYL75UNSPSC39131707UPC00781381696951

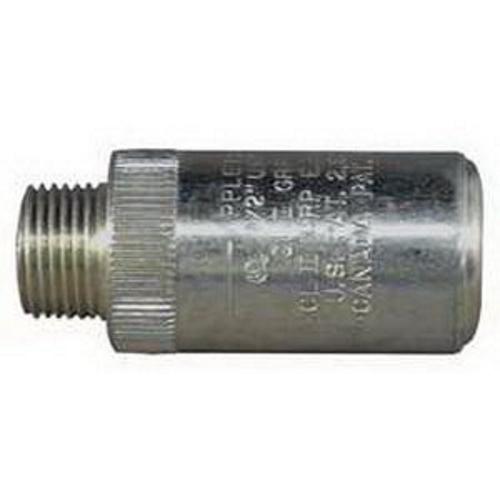

Image provided may only be a representation of final product and may include optional equipment
