Appleton VMV3LCJ5BU Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | VMV3LCJ5BU |
| SKU #: | 2466472 |
| Amperage Rating: | 720 mA |
| Dimensions: | 11.33 x 11.56 in |
| Enclosure Type: | NEMA 3R/4/4X/5/IP66/IP67 |
| Lamp Wattage: | 28 W |
| Lens Type: | Glass Refractor |
| Series: | Contender |
| Housing material: | Cast Copper-Free Aluminum |
| Mounting type: | Pendant/Flexible Pendant/Ceiling/Wall/Quad/25 deg Stanchion/Straight Stanchion |
| UNSPSC: | 39112102 |
| UPC: | 00078138122846 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton VMV3LCJ5BU
Brand: Appleton
Part Number: VMV3LCJ5BU

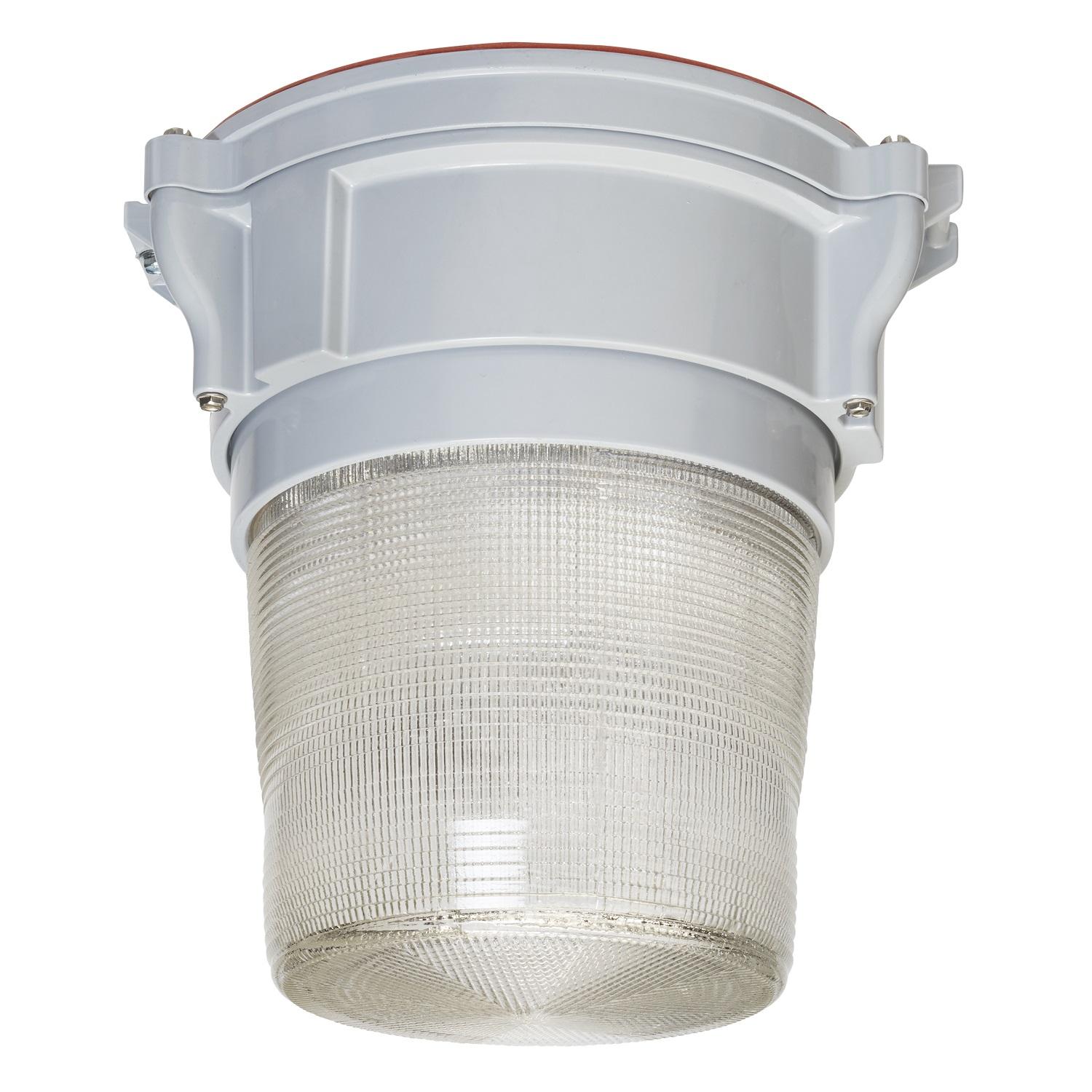

Appleton® LED Luminaire, Enclosed Gasketed, Series: Contender™, 120 to 277 VAC, 125 to 300 VDC, 720 mA, LED Lamp, 28 W Lamp, 200000 hr Average Life, Cool White Light, 5000 K Color Temperature, >70 CRI, Glass Refractor Lens, 3000 Lumens, NEMA 3R/4/4X/5/IP66/IP67 Enclosure, Pendant/Flexible Pendant/Ceiling/Wall/Quad/25 deg Stanchion/Straight Stanchion Mounting, Cast Copper-Free Aluminum Housing Material, Epoxy Powder Coated Housing Finish, 11.33 x 11.56 in Dimensions
Additional Description: APLE-VMV3LCJ5BU CNTLED, 3000LM, CW, J5, 120-277V
Catalog Description: CONTENDER LED LUMINAIRE, 3000 LUMEN, 5000K COOL WHITE COLOR TEMPERATURE, NEMA TYPE V, PRISMATIC GLASS REFRACTOR GLOBE, 120-277VAC AND 125-300VDC, 50/60HZ
VMV3LCJ5BU Application
For use in marine and hazardous and wet locations, walkways/catwalks, stairwells, grain elevators, tunnels, pipe racks, offshore rigs, vessel lighting, cooling towers and processing areasVMV3LCJ5BU Item Features
- Enclosed and gasketed fixtures suitable for use in a wide range of industrial, chemical processing and other areas where flammable gases, vapors and combustible dusts and fibers are present including simultaneous exposure
- Ideal for use in areas of low clearance, low ceiling heights or where fixture weights must be minimized
- Typical industries include pulp and paper mills, processing plants, chemical plants, petrochemical facilities, oil refineries, drilling rigs, foundries, waste treatment, mining and steel mills
- Compact, light weight low profile design is suited for low mounting heights (less than 12 lb)
- Customize to the application requirements with four different field replaceable globe options: clear and diffused polycarbonate, clear glass, or prismatic glass refractor
- Three light output levels for retrofit of HID fixtures up to 175 W
- Standard 6 kV surge protection
- Heavy duty, high temperature silicone rubber gaskets
- Luminaire comes pre-wired with three conductors, approximately 12 in L of 14 AWG TEW wire from the IP68 watertight NPT hub at the top of the luminaire lid
- 70 to 100 W HPS light level equivalent
VMV3LCJ5BU Standards
NEC Certified|CEC Compliant|ABS Approved|CSA Certified|UL Listed|Class I Div 2 Groups A/B/C/D/Zone 2/Group IIC/Class II/Div 1 Groups E/F/G/Zone 21/22/Group IIIC/Class II Div 2 Groups F/G/Class IIISKU #2466472Part Number #VMV3LCJ5BUUNSPSC39112102UPC00078138122846
