Appleton VMV4LCG5BU Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | VMV4LCG5BU |
| SKU #: | 2466473 |
| Amperage Rating: | 1000 mA |
| Color Rendering Index (CRI): | >70 |
| Dimensions: | 5.76 x 11.56 in |
| Enclosure Type: | NEMA 3R/4/4X/5/IP66/IP67 |
| Housing Finish: | Epoxy Powder Coated |
| Lamp Type: | LED |
| Lamp Wattage: | 38 W |
| Lens Type: | Glass Globe |
| Light Color: | Cool White |
| Lumens: | 4400 Lumens |
| Series: | Contender |
| Type: | Enclosed Gasketed |
| Country of origin: | MX |
| Housing material: | Cast Copper-Free Aluminum |
| Mounting type: | Pendant/Flexible Pendant/Ceiling/Wall/Quad/25 deg Stanchion/Straight Stanchion |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39112102 |
| UPC: | 00078138122829 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$895.99 / Each
Typical price:$1584.10 / Each
Quantity:
- Appleton LED Luminaire, Enclosed Gasketed, Series: Contender, 120 to 277 V AC/125 to 300 V DC, 1000 mA, LED Lamp, 38 W Lamp, 200000 hr Average Life, Cool White Light, 5000 K Color Temperature, >70 CRI, Glass Globe Lens, 4400 Lumens, NEMA 3R/4/4X/5/IP66/IP67 Enclosure, Pendant/Flexible Pendant/Ceiling/Wall/Quad/25 deg Stanchion/Straight Stanchion Mounting, Cast Copper-Free Aluminum Housing Material, Epoxy Powder Coated Housing Finish, 5.76 x 11.56 in Dimensions
VMV4LCG5BU Application
For use in marine and hazardous and wet locations, walkways/catwalks, stairwells, grain elevators, tunnels, pipe racks, offshore rigs, vessel lighting, cooling towers and processing areasVMV4LCG5BU Item Features
- Enclosed and gasketed fixtures suitable for use in a wide range of industrial, chemical processing and other areas where flammable gases, vapors and combustible dusts and fibers are present including simultaneous exposure
- Ideal for use in areas of low clearance, low ceiling heights or where fixture weights must be minimized
- Typical industries include pulp and paper mills, processing plants, chemical plants, petrochemical facilities, oil refineries, drilling rigs, foundries, waste treatment, mining and steel mills
- Compact, light weight low profile design is suited for low mounting heights (less than 12 lb)
- Customize to the application requirements with four different field replaceable globe options: clear and diffused polycarbonate, clear glass, or prismatic glass refractor
- Three light output levels for retrofit of HID fixtures up to 175 W
- Standard 6 kV surge protection
- Heavy duty, high temperature silicone rubber gaskets
- Luminaire comes pre-wired with three conductors, approximately 12 in L of 14 AWG TEW wire from the IP68 watertight NPT hub at the top of the luminaire lid
- 100 to 150 W HPS light level equivalent
VMV4LCG5BU Standards
NEC Certified|CEC Compliant|ABS Approved|CSA Certified|UL Listed|Class I Div 2 Groups A/B/C/D/Zone 2/Group IIC/Class II/Div 1 Groups E/F/G/Zone 21/22/Group IIIC/Class II Div 2 Groups F/G/Class IIISKU #2466473Part Number #VMV4LCG5BUUNSPSC39112102UPC00078138122829

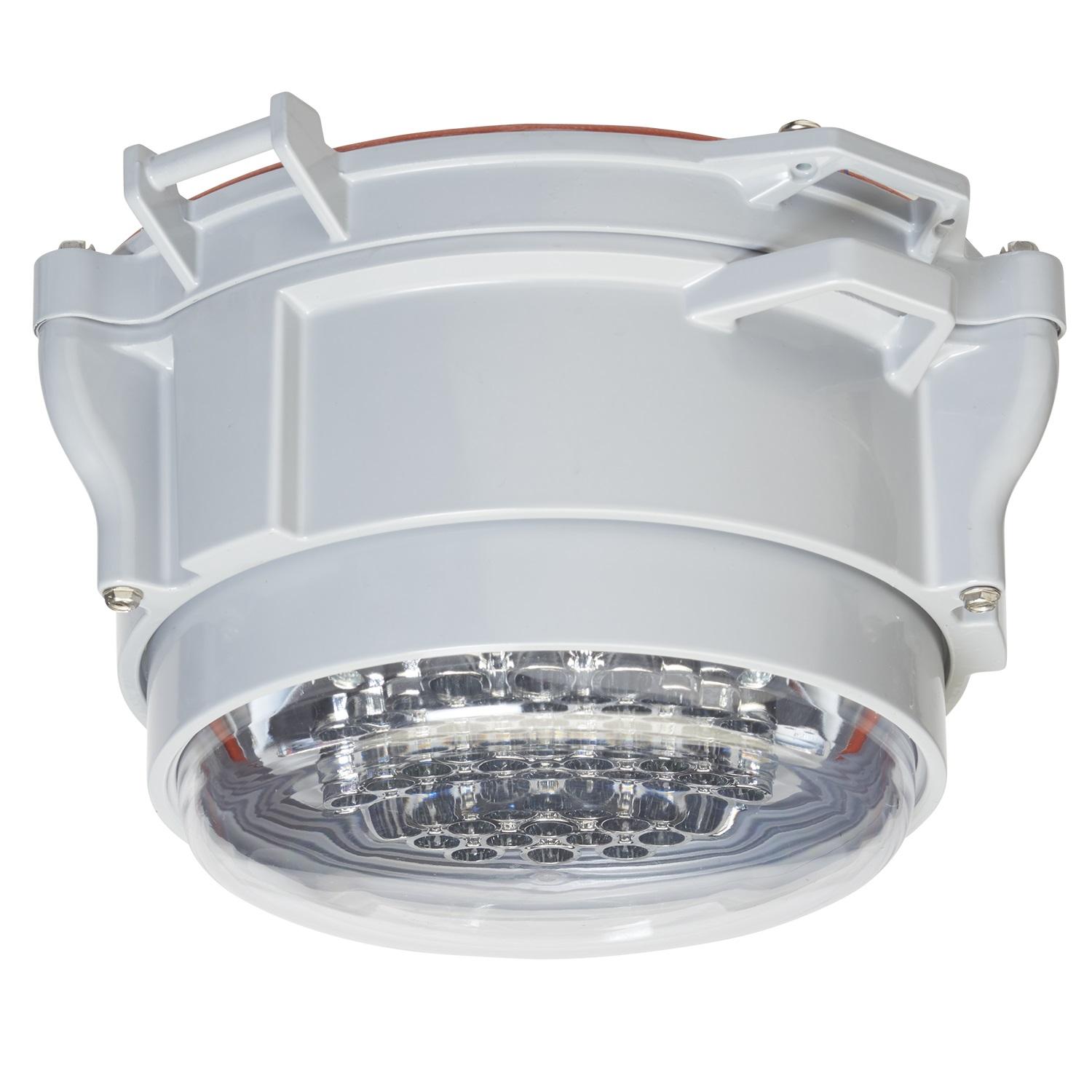

Image provided may only be a representation of final product and may include optional equipment
