Appleton WD2S1034 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | WD2S1034 |
| SKU #: | 2469807 |
| Dimensions: | 12 in W x 6.63 in D x 20 in H |
| Enclosure Type: | NEMA 3/3R/4/4X/12 |
| Horsepower: | 25 hp at 240 VAC/40 hp at 480 VAC/50 hp at 600 VAC |
| Series: | WD2S |
| UNSPSC: | 39121406 |
| UPC: | 00078138128920 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton WD2S1034
Brand: Appleton
Part Number: WD2S1034

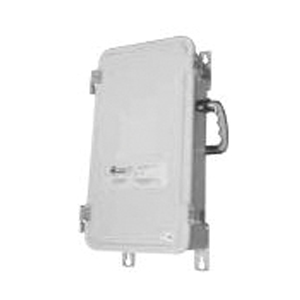

Appleton® Disconnect Switch, Non-Fusible, Series: WD2S, 240/480/600 VAC, 100 A, 25 hp at 240 VAC/40 hp at 480 VAC/50 hp at 600 VAC, NEMA 3/3R/4/4X/12 Enclosure, 12 in W x 6.63 in D x 20 in H, Copper-Free Aluminum, Epoxy Powder Coated
Additional Description: APLE-WD2S1034 DISCONNECT SWITCH. DIV.2 100A
Catalog Description: Load Disconnect Switch, Constructional Feature Explosionproof, Voltage Rating 600 VAC, Current Rating 100 Ampere, Fuse Provision Non Fusible, Enclosure Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/12, Enclosure Material Epoxy Powder Coated, Mounting Mounting Feet, Size 12 Inch W x 6.63 Inch D x 20 Inch H, Approval UL, CSA, Application Individual Motor Control Switch
WD2S1034 Application
Functions as load disconnect switch or as individual motor control switchWD2S1034 Item Features
- Factory sealed no external seals required
- Stainless steel latches for easy access and corrosion resistance
- Standard epoxy powder coating delivers exceptional corrosion resistance
- Ergonomically designed rugged cast aluminum handle
- Removable hinged cover allows for ease of installation and maintece
- Short circuit withstand rated to 10000 RMS symmetrical amperes (unfused)
- Single top and bottom conduit entries supplied, drilled and tapped 1-1/4 in NPT
- Key hole mounting feet for easy installation
- Unit is equipped with defeatable door interlock which allows emergency access when switch is energized
- Cover can be padlocked closed
- Operating handle can be locked in the OFF position with provision to lock in the ON position
- Line side accommodates #8 to 4/0 AWG copper wire, load side accommodates #8 to 4/0 copper wire
- 100 A models and smaller are suitable for use with DC voltages (250 VDC max) as well as AC voltages
- All models are suitable for use with AC voltages to 600 VAC max
- copper-free aluminum enclosure
- Durable cast aluminum operating handle
- Stainless steel hardware
- Constructional feature explosionproof and mounting feet
WD2S1034 Standards
CEC Canada: Ex de IIB + H2 T5|cCSAus 039569|CSA C22.2 #4|NEC/CEC Class I Division 2 Group B C D/Class II Division 12 Group F G/Ex de IIB + H2/Class I Zone 1 AEx de IIB + H2|NEC: Class I Zone 1 AEx de IIB + H2 T5|UL 698SKU #2469807Part Number #WD2S1034UNSPSC39121406UPC00078138128920
Image provided may only be a representation of final product and may include optional equipment
