Appleton WD2S20034 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | WD2S20034 |
| SKU #: | 2469742 |
| Enclosure Type: | NEMA 3/4/4X/5 |
| Finish: | Epoxy Powder Coat |
| Series: | WD2S |
| UNSPSC: | 0 |
| UPC: | 00078138109340 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7683.35 / Each
Quantity:
Appleton WD2S20034
Brand: Appleton
Part Number: WD2S20034
Additional Description: APLE-WD2S20034 DISCONNECT SWITCH. DIV.2 200A
WD2S20034 Application
Suitable for use with DC voltages (250 Vdc Max) as well as AC voltages , suitable for use with AC voltages to 600 Vac max , allows for ease of installation and maintenanceWD2S20034 Item Features
- Factory sealed, no external seals required
- 100 A models and smaller are suitable for use with DC voltages (250 Vdc Max) as well as AC voltages
- Short circuit withstand rated to 10,000 RMS symmetrical amperes (unfused)
- Removable hinged cover allows for ease of installation and maintenance
- Single top and bottom conduit entries supplied, drilled and tapped 1-1/48221
- Key-hole mounting feet for easy installation
- Unit is equipped with defeatable door interlock which allows emergency access when switch is energized
- Cover can be padlocked closed
- Operating handle can be locked in the OFF position with provision to lock in the ON position
WD2S20034 Standards
NEC and CEC Certified Class I, Division 2, Groups B, C, D/Class II, Division 1 and 2, Groups E, F, G/Ex de IIB + H2/Class I, Zone 1, AEx de IIB + H2/Types 3$ 4, 4X, 5|NEC Certified Class I, Zone 1, AEx de IIB + H2 T5|CEC Certified Ex de IIB + H2 T5SKU #2469742Part Number #WD2S20034UNSPSC0UPC00078138109340

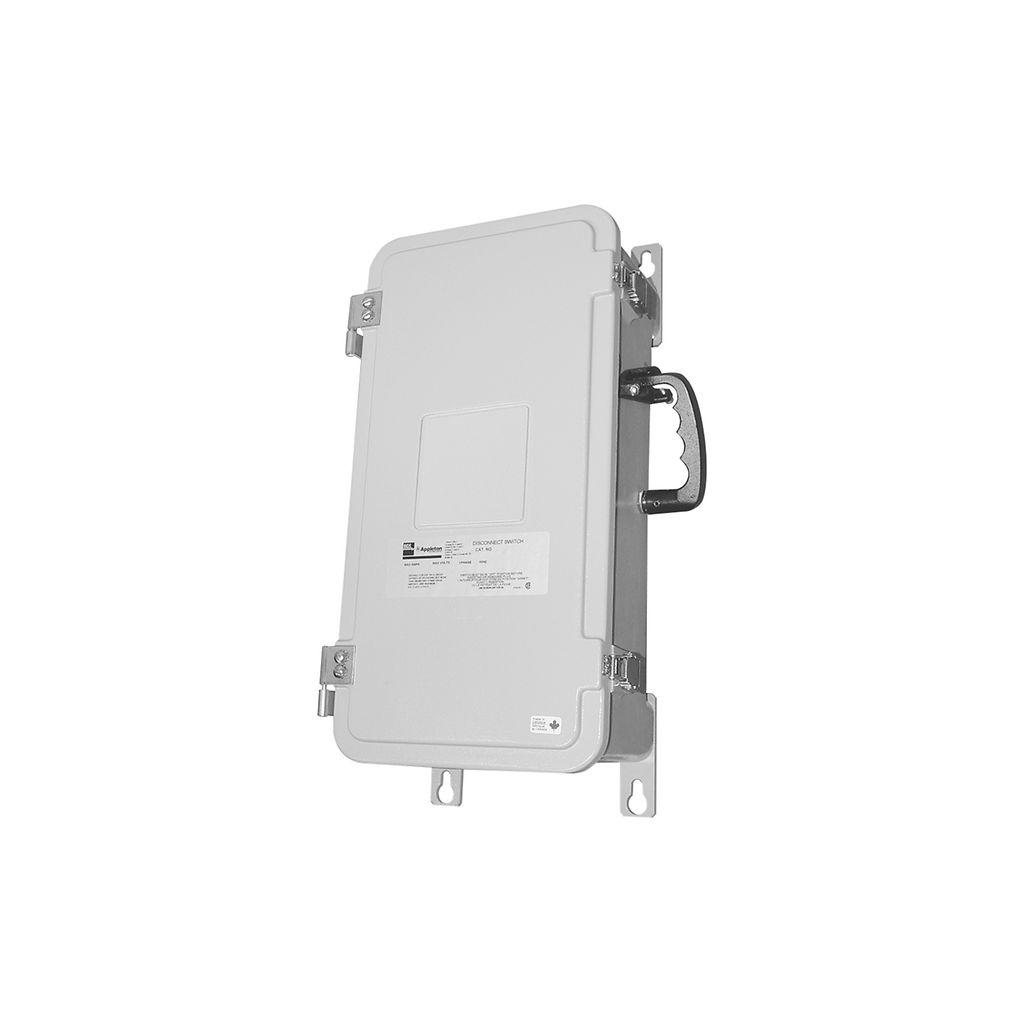

Image provided may only be a representation of final product and may include optional equipment
