Appleton WSRD6352WSQ
Part Number # WSRD6352WSQ
SKU # 2459739

WSRD6352WSQ
Appleton WSRD6352WSQ
Part Number # WSRD6352WSQ
SKU # 2459739
Appleton WSRD6352WSQ Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | WSRD6352WSQ |
| SKU #: | 2459739 |
| Type: | 3-Phase Fused Grounding Style 2 Square D |
| UNSPSC: | 39121406 |
| UPC: | 00781381756990 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton WSRD6352WSQ
Brand: Appleton
Part Number: WSRD6352WSQ
Appleton Interlocked Receptacle, 3-Phase Fused Grounding Style 2 Square D, Series: WSRD, 600 V AC/250 V DC, 60 A, 15 /50 hp, 50/60 Hz Frequency, 4 Pole, 3 Wires, NEMA 3R/12 NEMA, 6 to 2 AWG Wire, Copper Free Aluminum
Additional Description: APLE-WSRD6352WSQ SQ-D RCPT NEMA12 60A FUSE WIND
Catalog Description: Appleton Fused WSRD Series Interlocked Receptacle With Enclosure, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 6 - 2 AWG, Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50/60 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle, Sheet Metal Enclosure, Nema Rating: NEMA 3R, 12, Mounting: Surface Mount, Motor Horsepower: 15 HP Standard/50 HP Maximum At 600 VAC, Finish: Epoxy Powder Coat Receptacle, Enamel Coated Enclosure, Dimensions: 10.81 IN Width X 23 IN Height X 10 IN Depth, Standard: UL 98, UL 50E, UL 1682, UL 1686, UL Listed: E145917, E160652, CSA Standard: C22.2 No.4, C22.2 No. 182.1, CSA Certified: 025875, For ACP6034BC Mating Plug
WSRD6352WSQ Application
ACP6034BC Mating Plug, Powertite ACP and CPH Plugs, Welders, Generators, Compressors, Infrared Ovens, Batch Feeders, Conveyors, Truck Terminals and Marine Docks ApplicationsWSRD6352WSQ Item Features
- Shell and extra pole grounding style 2
- For use where an interlocked disconnect switch is desired to control a Powertite receptacle and insertion or removal of plug
- Short circuit withstand rated to 200000 RMS symmetrical amps
- Unit is equipped with defeatable door interlock which allows emergency access when switch is energized
- Cover can be padlocked closed
- Dead front design receptacle is not energized until plug is fully inserted and switch is engaged
WSRD6352WSQ Standards
UL 98, UL 50E, UL 1682, UL 1686; UL Listed: E145917, E160652; CSA Standard: C22.2 No.4, C22.2 No. 182.1; CSA Certified: 025875SKU #2459739Part Number #WSRD6352WSQUNSPSC39121406UPC00781381756990

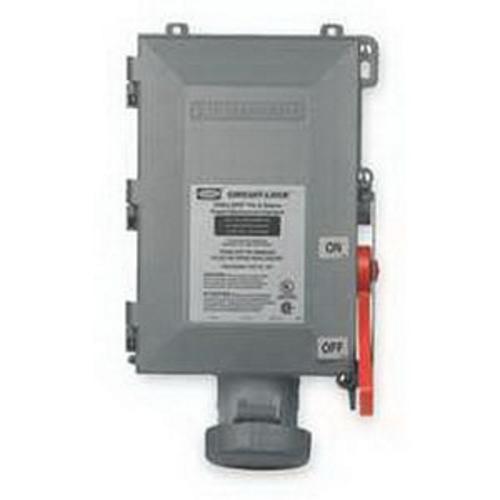

Image provided may only be a representation of final product and may include optional equipment
