1107V-BOX

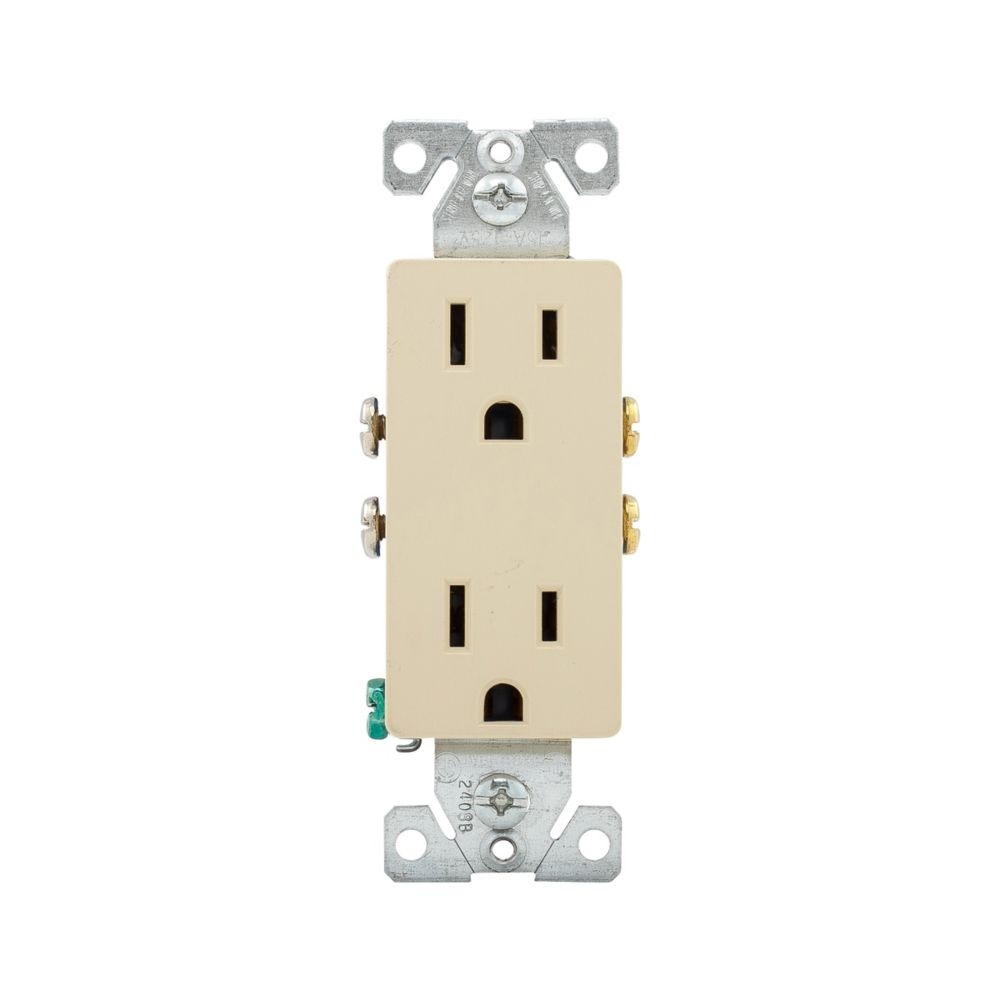

Arrowhart 1107V-BOX Straight Blade Receptacle
Part Number # 1107V-BOX
SKU # 360556
$457.00 / 100Each
Arrowhart 1107V-BOX Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 1107V-BOX |
| SKU #: | 360556 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 6 in H x 4.5 in W x 3.62 in D |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | 1107 |
| Terminal Type: | Push Wired/Side/Screw, Push-In/Screw |
| Type: | Decorator Duplex |
| Color: | Ivory |
| Country of origin: | US |
| Material: | Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00032664183805 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$457.00 / 100Each
Quantity:
- EATON Wiring Devices Straight Blade Receptacle, Decorator Duplex, Series: 1107, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Residential/Standard Grade, Push-In/Screw Terminal, Thermoplastic, Ivory, 6 in H x 4.5 in W x 3.62 in D Dimensions
1107V-BOX Application
Indoor Applications1107V-BOX Item Features
- Longer, wider strap provides 40% more contact area to wall board, virtually eliminating floating installations
- Patented built-in wire stripper for 12 and 14 AWG wire to speed installation
- Push-in terminals accept #14 AWG solid wire for quick installation
- Patented built-in wire looper for pre-looping
- High impact-resistant thermoplastic face and back body eliminates breakage
- Double wipe ground contacts ensure long term ground retention
- Easy access split circuit break-off tab
- Tri-combo screws accept slotted, Phillips and Robertson head tools for installation flexibility
- Terminal screws are backed out and ready-to wire
- Side wire terminals accept up to 10 AWG solid wire
- Impact-resistant thermoplastic insulation
- Flush mounting
- 14 to 10 AWG wire terminal
- https://www.youtube.com/watch?v=wVyZtLMLREA
1107V-BOX Standards
UL 498|UL File No. E15058|CSA C22.2 File No. 42|NOM 426 CertifiedSKU #360556Part Number #1107V-BOXUNSPSC39121406UPC00032664183805
